Note*: Due to product upgrades and iterations, the parts of the printer may have changed. If you are unsure whether this part is compatible with your printer, please contact our customer service.
100% Brand New / Original Guaranteed
▶ L1800 Replacement Tutorial
High-Resolution Precision Nozzles
Genuine components optimized for Procolored systems to ensure zero damage to circuitry.
Industrial-Grade Peristaltic & Diaphragm Modules

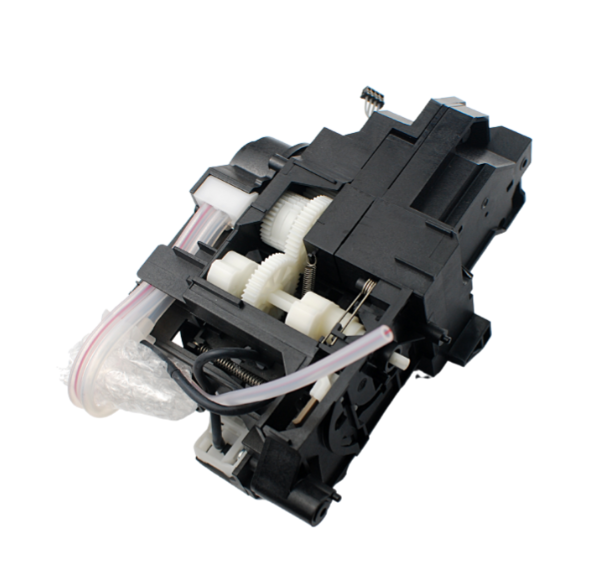

F13 / V11 Series

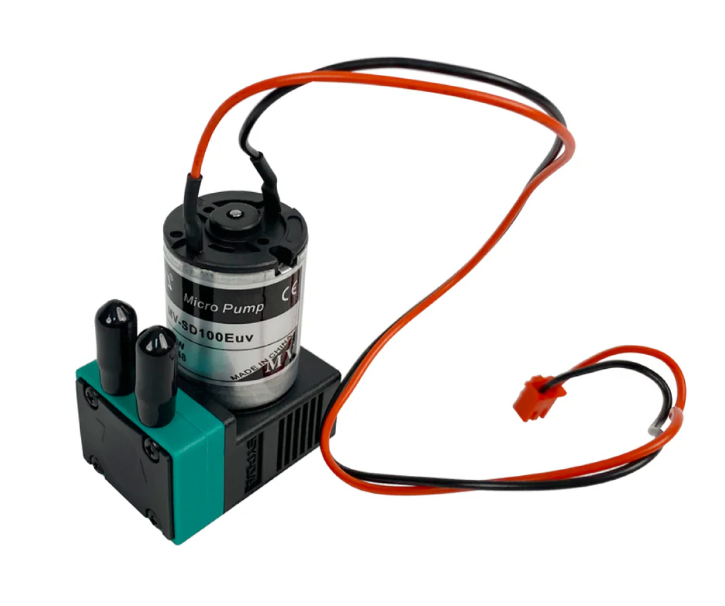

VF13 Pro / F13 Pro

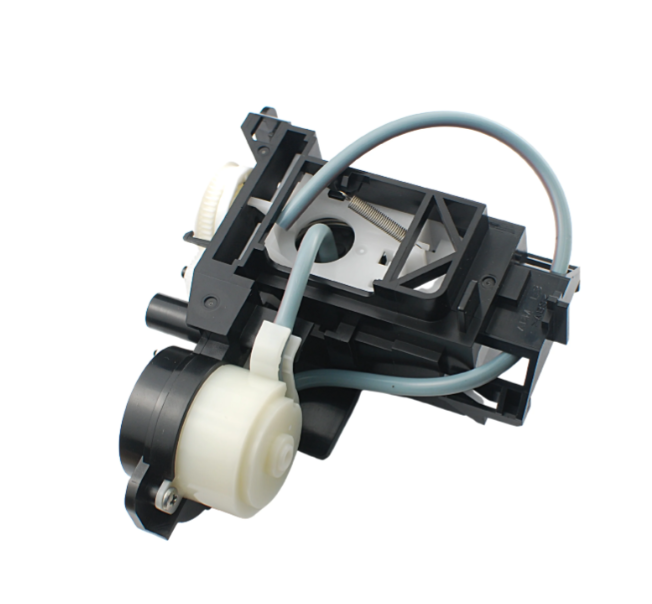

F8 / V4 / V6 Series
These pumps are essential for maintaining ink health and system cleanliness. The White Ink Circulation Pump prevents pigment sedimentation, while the Waste Pump efficiently extracts excess ink during cleaning.
Maintenance: Check pump tubes every 3-6 months for elasticity loss or blockages to ensure consistent flow.
Heavy-Duty Chassis for Superior Color Accuracy
Reinforced Industrial Carriage Frame
The Ink Carriage is the "chassis" of your print system, engineered to provide rigid support for the printhead and ink dampers. Its high-end construction ensures years of reliable use, maintaining micron-level alignment even under heavy workloads to deliver vivid color accuracy and consistent results.
Optimized for low-friction travel across the guide rail for jitter-free printing.
Ensures exact ink droplet placement for superior color vividness.
Durable materials resistant to ink corrosion and mechanical fatigue.
Simplified installation for quick printhead cleaning and daily checks.
High-Integration Mainboard (MB)
The Motherboard (MB) is the central control hub, acting as the system's "brain." It manages complex data processing and command transmission, ensuring all internal modules operate in perfect synchronization.
While the MB processes core data, the Control Board (CB) acts as the interface panel, coordinating hardware interactions like power and paper feed commands.
High-Precision Filtration & Pressure Balancing
▶ Replacement Tutorial
DTF Series
UV Series
Detail View
Designed for Procolored printers, these high-quality PP dampers serve a dual purpose: filtering ink impurities and balancing internal pressure. They prevent printhead clogging and ensure high-speed, continuous printing.
Replace immediately if you notice aging, physical damage, or air leakage to avoid costly printhead damage.
Suitable for Solvent, Eco-Solvent, and Water-based inks.
Guarantees uninterrupted ink flow during peak production.
A hardware-based security device required to operate the RIP software. It must remain connected to your workstation during all printing tasks.
Studio Lite
Procolored RIP
Official Adobe authorized partnership. Supports full PDF interpretation, ensuring perfect color reproduction without data loss.
Optimizes distribution of variable dots. Enhances transitions and fine details to reach photo-realistic quality.
High-speed processing optimized for multi-core Windows systems. Handles large data volume jobs with high-zoom preview.
Multi-channel ink output (White + CMYK + Varnish). Any channel can be assigned as spot color for personalized production.
Enables seamless continuous copying. Repeat single PRN jobs for extra-long rolls while maximizing efficiency.
Generates MCM characteristic curves automatically. Compatible with standard ICC files for professional color management.
Customize the output ratio of large, medium, and small dots to solve issues in extreme dark or light areas.
Full control over printing accuracy. Supports fixed ink options (up to 12 colors) and manual spot color assignments.
Adopting upgraded heating technology, this plate provides precise heat distribution for superior curing results. Its optimized size and ultra-smooth surface ensure full-width drying without "dead corners," resulting in a perfect fusion of powder and ink across various substrates.
Ensures ink is firmly attached to the transfer film, preparing it for high-quality transfers.
Optimized temperature control prevents patterns from peeling or falling off after transfer.
Promotes the chemical reaction of the ink for brighter, fuller, and more professional prints.
Model: Precision Series
Built with high-endurance materials for stable performance in demanding industrial environments. This controller offers ultra-precise temperature calibration, ensuring consistent curing for different ink types and substrates. Designed for seamless plug-and-play integration with Procolored curing ovens.
Real-time tracking for thermal accuracy and system stability.
Fine-tune heat settings for specific DTF/UV ink requirements.
Anti-overheating tech prevents ink burning and film damage.
Auto-shutdown and alarm systems for maximum hardware safety.
DTF Standard Tank
UV Light-Shield Tank
A critical component for high-performance ink delivery. Procolored ink tanks are engineered for consistent pressure and fluid supply, minimizing interruptions during long-run printing. The specialized UV variant provides essential light-blocking protection to prevent premature ink curing within the system.
DTF (White Ink Agitator)
UV (Anti-Sedimentation)
Prevents pigment sedimentation—critical for white inks. Ensures consistent opacity and color density from the first print to the last.
By maintaining constant fluid movement, the system drastically reduces printhead nozzle clogging and uneven jetting defects.
Active stirring prevents chemical decomposition and separation of components, maximizing the effective shelf life of your ink.
Automated mixing eliminates the need for manual tank shaking, allowing for faster prep times and smoother daily operations.
Standard Sealing Unit
Active Suction System
The capping unit serves as the printhead's "home base." By creating an airtight seal over the nozzle plate, it prevents ink evaporation and solvent loss. Its integrated ink-absorbing pads and specialized tubing (on select models) enable the vacuum pressure needed for deep cleaning and air-bubble removal.
Maintains critical moisture levels to stop nozzle surface drying.
Physically blocks dust and fibers from settling on the delicate nozzles.
Reduces the need for aggressive manual wiping, preserving head integrity.
Ensures a "first-time" perfect jetting performance even after idle periods.
Standard AC Power Module
Procolored's integrated power module is a high-reliability electrical interface designed for industrial printing hardware. By combining a standard AC inlet, a mechanical rocker switch, and a dedicated fuse compartment into a single chassis-mounted unit, it centralizes power control while providing a critical barrier against electrical anomalies.
Easy-access fuse tray protects sensitive mainboards from sudden voltage spikes.
High-tactile switch rated for thousands of cycles, ensuring crisp power isolation.
Constructed from UL-rated flame-retardant materials for long-term safety.
Standard 3-pin connection ensures compatibility with global power cords.
High-Torque Pump Module
In DTF systems, the circulation pump is vital for maintaining ink chemistry. This precision component manages Active Circulation—keeping titanium dioxide particles in white ink suspended—and Waste Discharge, ensuring the capping station remains clear of excess ink. Essential for maintaining the stable internal pressure required for high-speed production.
High-frequency pulse prevents heavy ink particles from settling.
Maintains a steady ink head pressure for flawless jetting density.
Chemical-resistant internal diaphragm for long-term ink exposure.
Optimized motor design reduces vibration and operational noise.
Regularly check pump connections during scheduled maintenance to ensure zero-air leakage in the circulation loop.
Panda Filter
Smokeless Module
Cotton Core (3pcs)
During the DTF powder curing process, smoke and odors are inevitable. Procolored's advanced filtration system is engineered to capture these emissions at the source. By utilizing high-density cotton cores and specialized filter housings, it effectively neutralizes pollutants, ensuring a safer, odor-free workspace and preventing residue buildup on your final prints.
Removes fine particulate matter generated during high-temp curing.
Neutralizes harsh solvent scents and VOCs for a better environment.
Maintains airflow without compromising internal oven temperatures.
User-friendly design allows for 30-second filter core swaps.
L1800 / 24V Module
R1390 / 48V Module
These professional-grade switching power supplies are the backbone of Procolored's DTF printers. Engineered to convert standard AC input into precise, ripple-free DC current, they provide the consistent energy required by high-speed motors, heating elements, and mainboard logic circuits.
Ensure all terminal screws are tightened to prevent arcing. Maintain a clear 2cm gap around the casing for optimal cooling.
Active safeguards against over-load, over-voltage, and short-circuits.
Built-in temperature sensors auto-regulate performance to prevent overheating.
Honeycomb aluminum casing provides structural strength and passive cooling.
Advanced capacitors filter out EMI interference for stable printhead signals.
Extended Care for F/V/T Series
▶ Watch Maintenance Tutorial
Complete Moisturizing Solution
To prevent costly printhead replacements, consistent moisture is mandatory. This specialized device acts as an active shield, utilizing nozzle protection liquid to keep internal channels wet and clear. It prevents the rapid drying of DTF ink, which is the primary cause of banding and nozzle drop-out.
F8 / F13 / F13 Pro / VF13 Pro
V4 / V6 / V11 / V11 Pro / V13 Pro / V23 Max
T8 / T11 Pro / T13 Pro / T23 Max
F8 Series
F13 Series
V11/T11
V4/V6/T8
DX5 Series
L805 Series
The Control Board (Shielding Board) serves as the logic gateway for the printer's execution system. It interprets data from the mainboard and converts it into real-time physical actions. By shielding sensitive signals and managing high-current distributions, it ensures that every hardware component—from the carriage motor to the ink delivery system—operates with absolute precision.
Power Board A
F13 Pro Module
Power Board B
Driver Board
V11 Driver
As the primary electrical interface, the Power Board is engineered to transform AC line voltage into a precisely regulated DC multi-rail system. It utilizes high-grade solid capacitors for voltage smoothing and EMI suppression, ensuring that logic controllers, printhead heaters, and high-torque motors receive noise-free energy without risk of thermal runaway or current spikes.
F13 Pro Series
V13 Pro XP600
6090 Series
Universal Unit
XP600 Adapter
Specifically engineered for high-fidelity inkjet Control, this board acts as the critical signal bridge between the mainboard's digital logic and the printhead's physical nozzles. It performs high-speed Digital-to-Analog (DAC) conversion to generate the complex electrical waveforms required to actuate piezoelectric elements, ensuring sub-micron accuracy in ink droplet formation.
Optimizes voltage curves to eliminate satellites and misting during high-speed printing.
Maintains consistent firing frequencies across all nozzle channels for uniform color density.
Low-latency processing architecture minimizes jitter and prevents image distortion.
Industrial-grade power MOSFETs ensure stable drive performance even during 24/7 cycles.
Reliable Ignition Modules for Procolored Series
The Startup Button Board serves as the primary gateway for the printer’s power management system. Beyond simple activation, it is engineered to deliver clean logic pulses to the mainboard, initiating a synchronized "handshake" across all internal modules. This ensures the system powers up in a controlled sequence, protecting sensitive circuitry from initial current surges.
Industrial-grade switches rated for 100k+ cycles with crisp physical feedback.
Built-in circuit stability prevents multi-triggering from a single physical press.
Standardized IDC/JST connectors for plug-and-play mainboard integration.
Supports integrated LED feedback indicators for immediate system status visibility.
