How to Install the Moisturizing Device

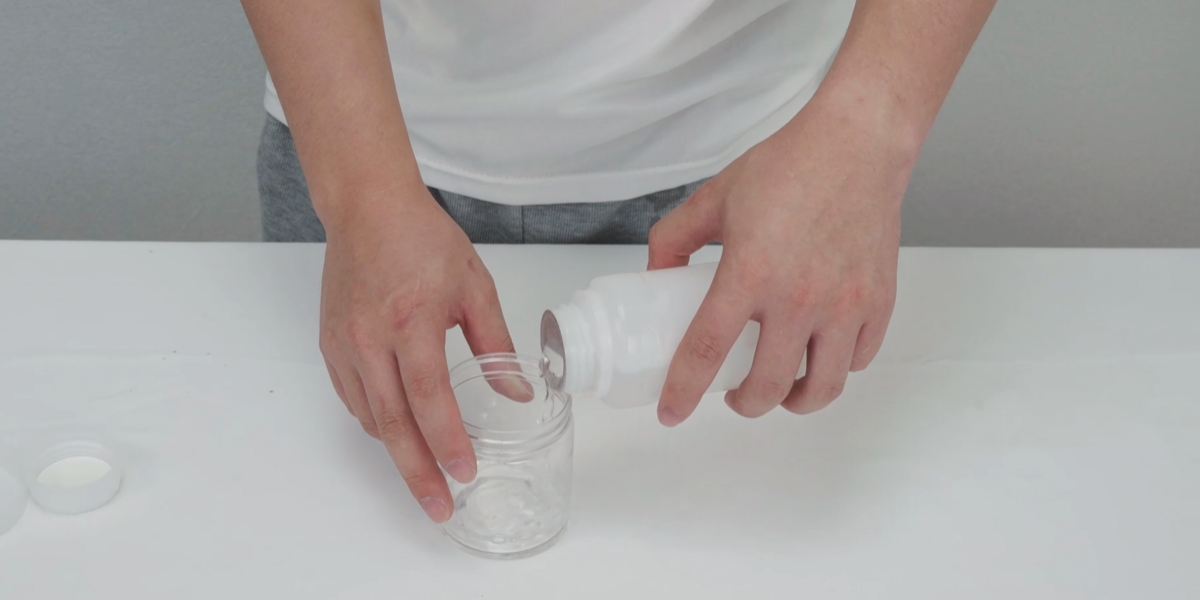

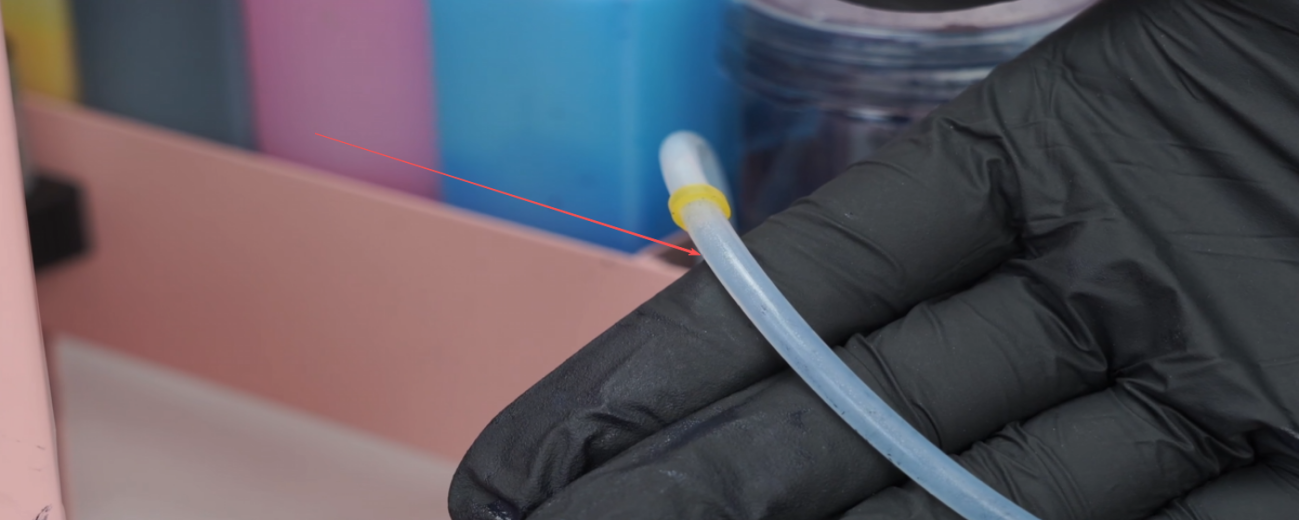

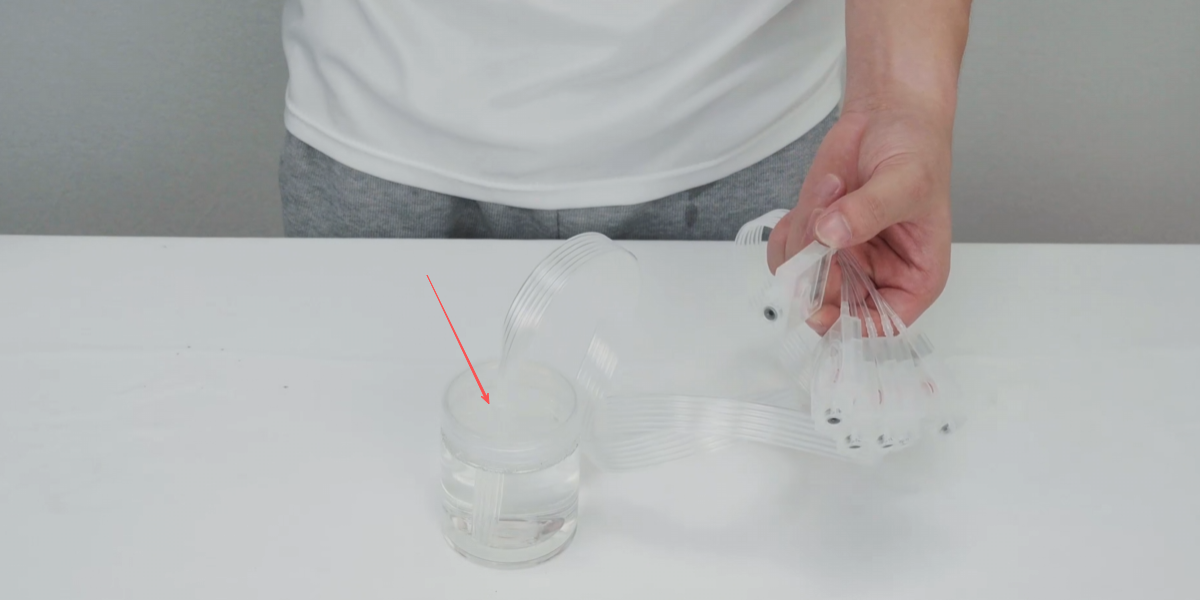

01 Pour in the moisturizing liquid.	02 Poke through the inner membrane of the ink cartridge with force.	03 Insert the ink tube into the bottle.

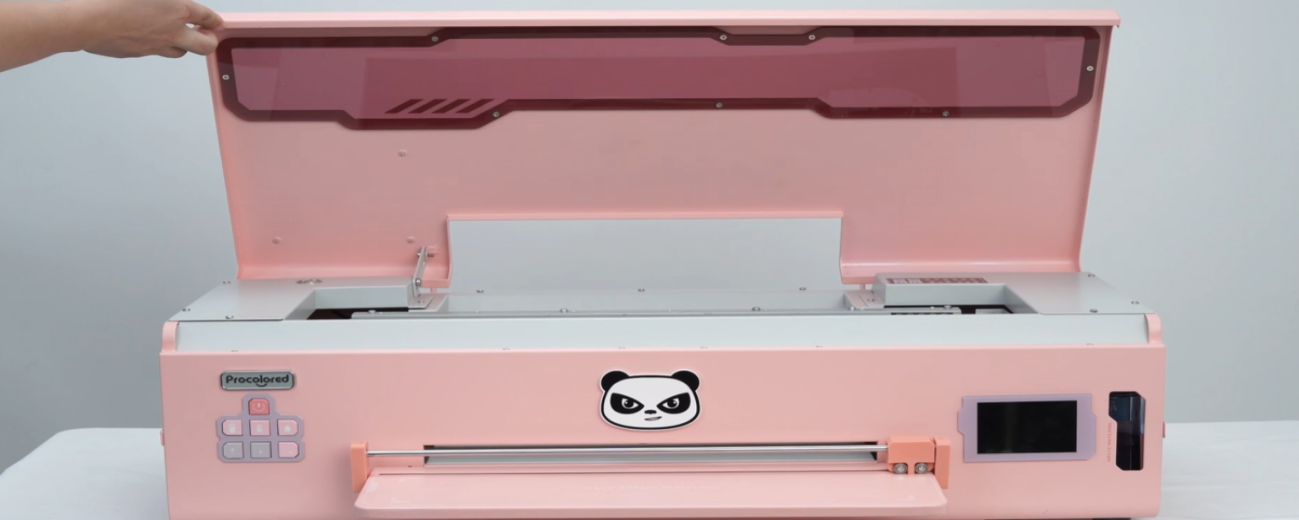

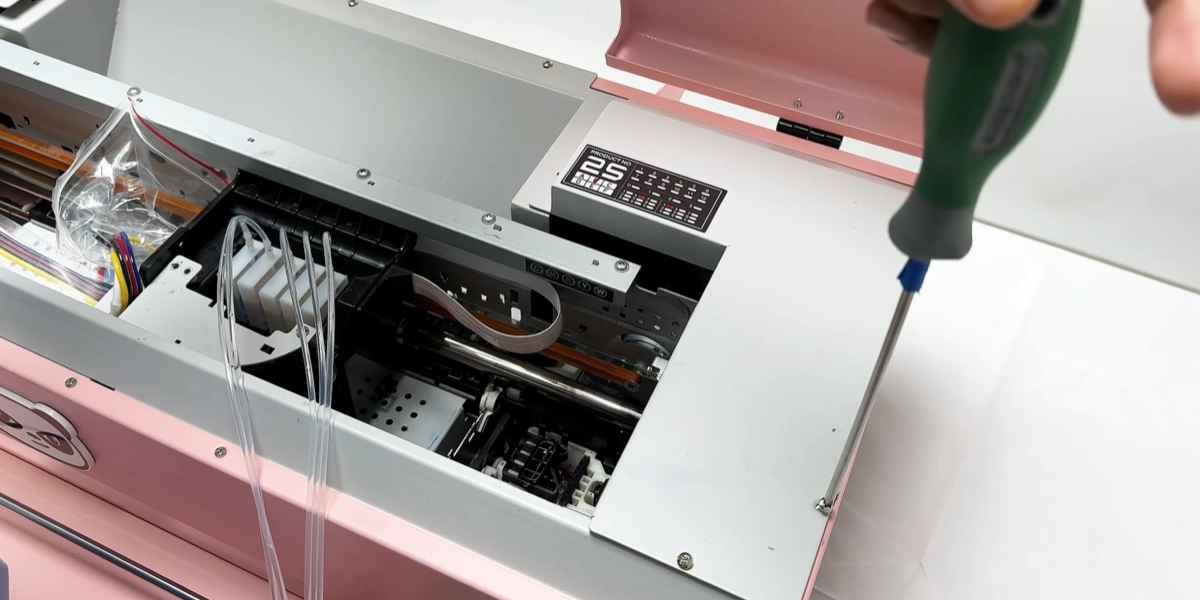

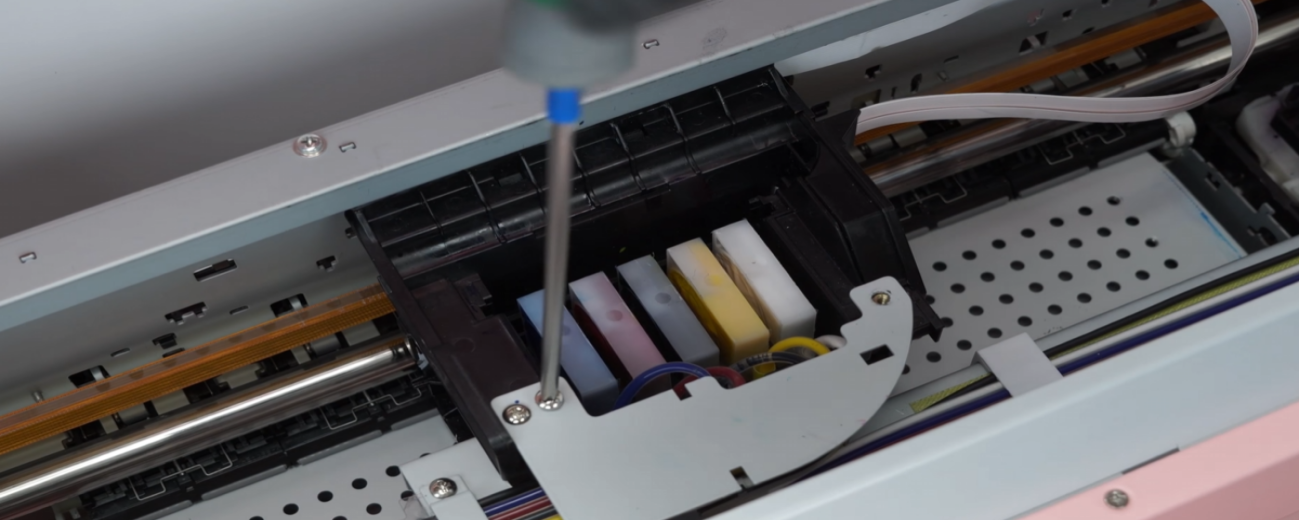

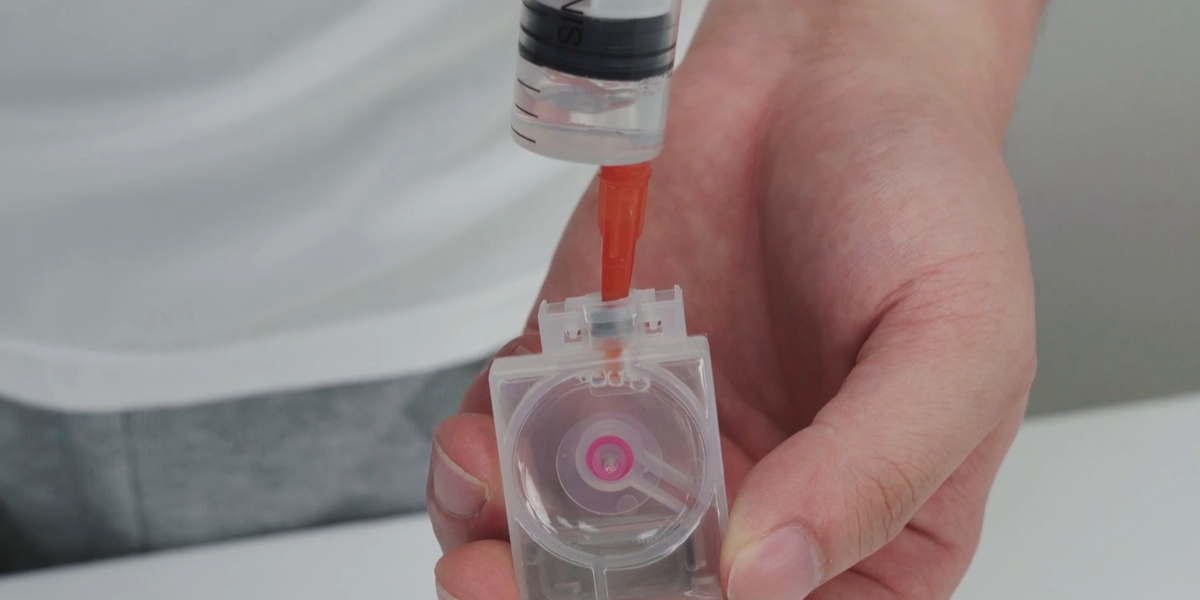

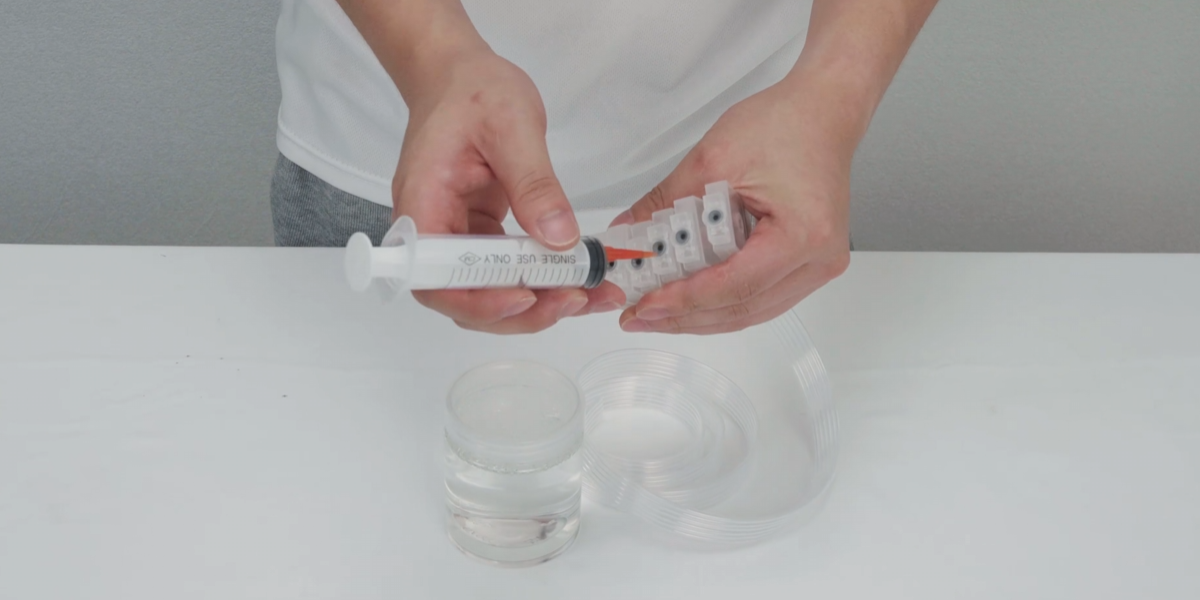

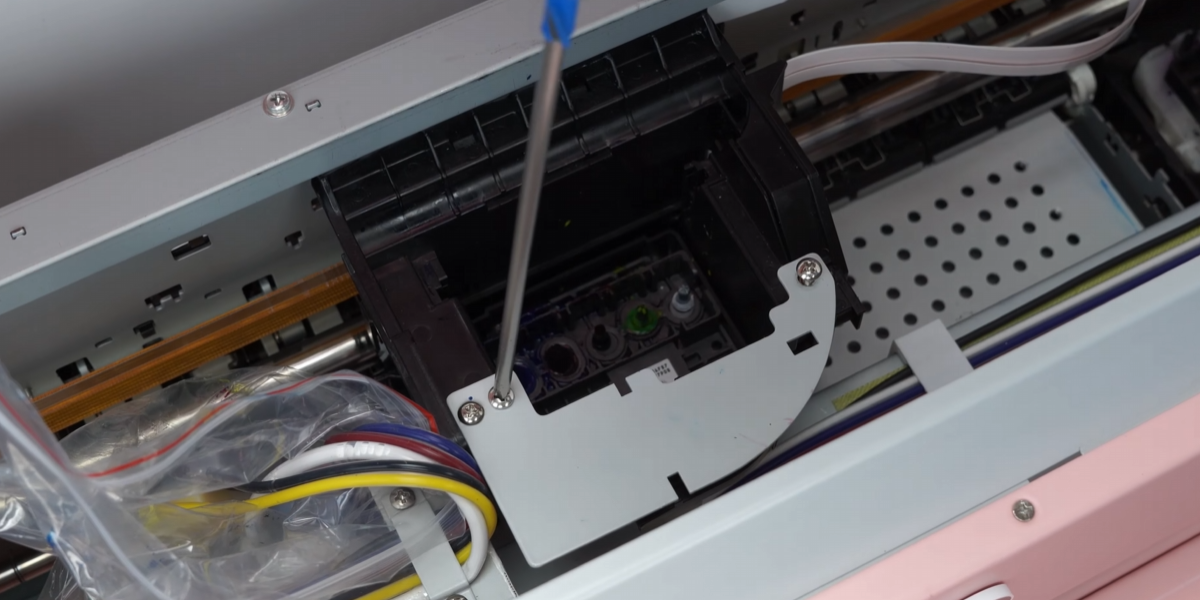

04 Draw 5ml of moisturizing liquid. Every ink cartridge needs to be filled.	05 Open the lid of the printer.	06 Remove the screws.

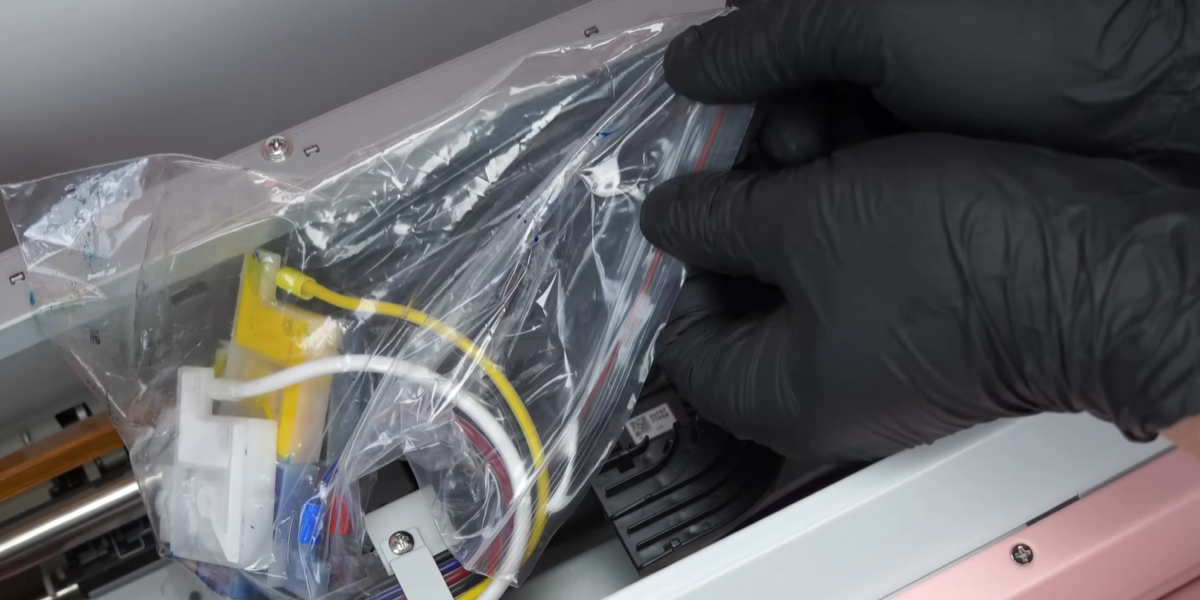

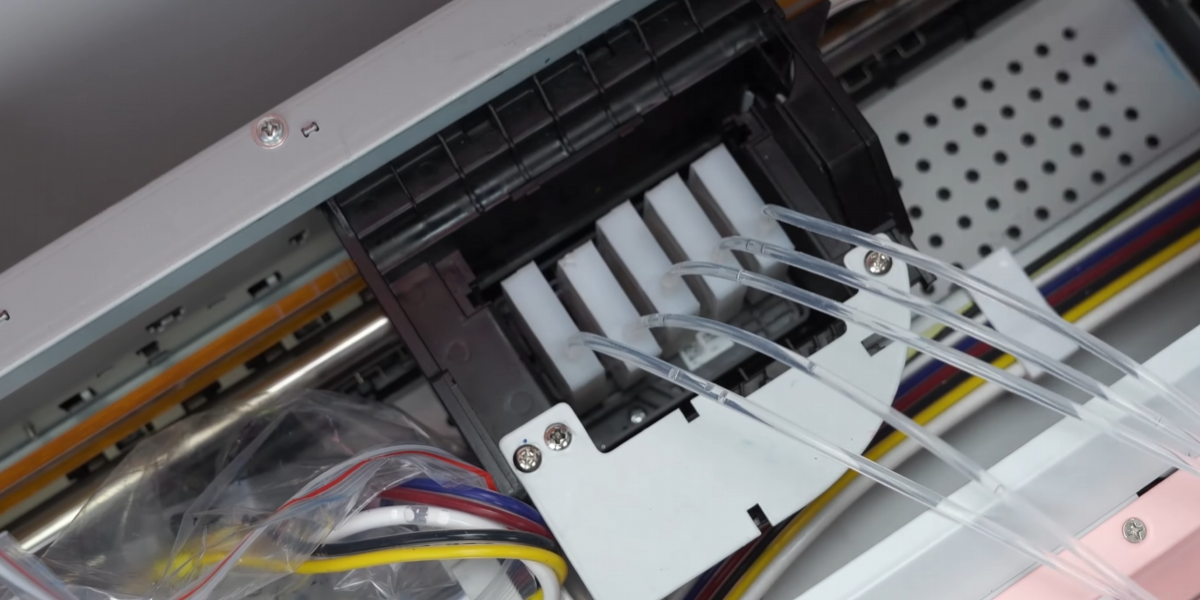

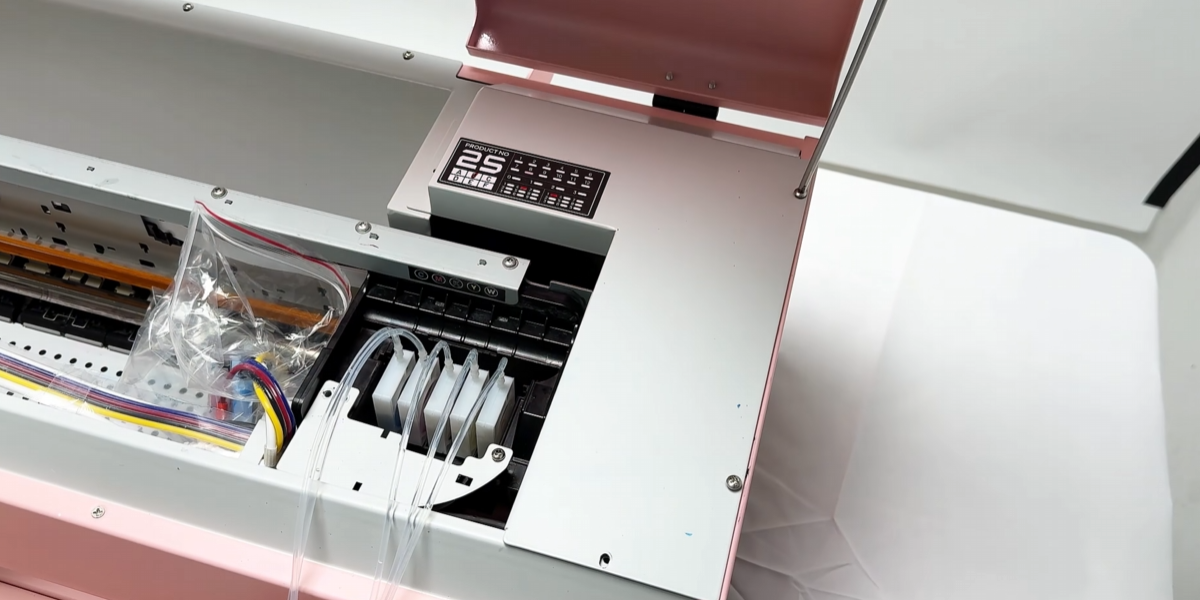

07 Seal with a plastic bag.	08 Reinstall the baffle to prevent loss.	09 Install the moisturizing ink cartridge — insert it all the way to the bottom.

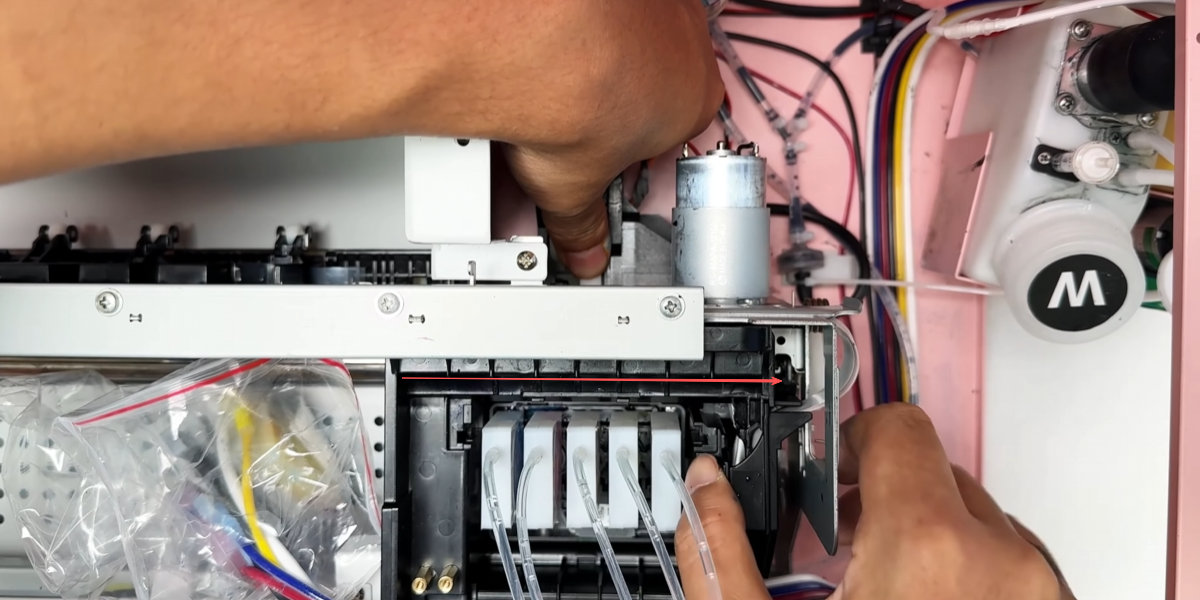

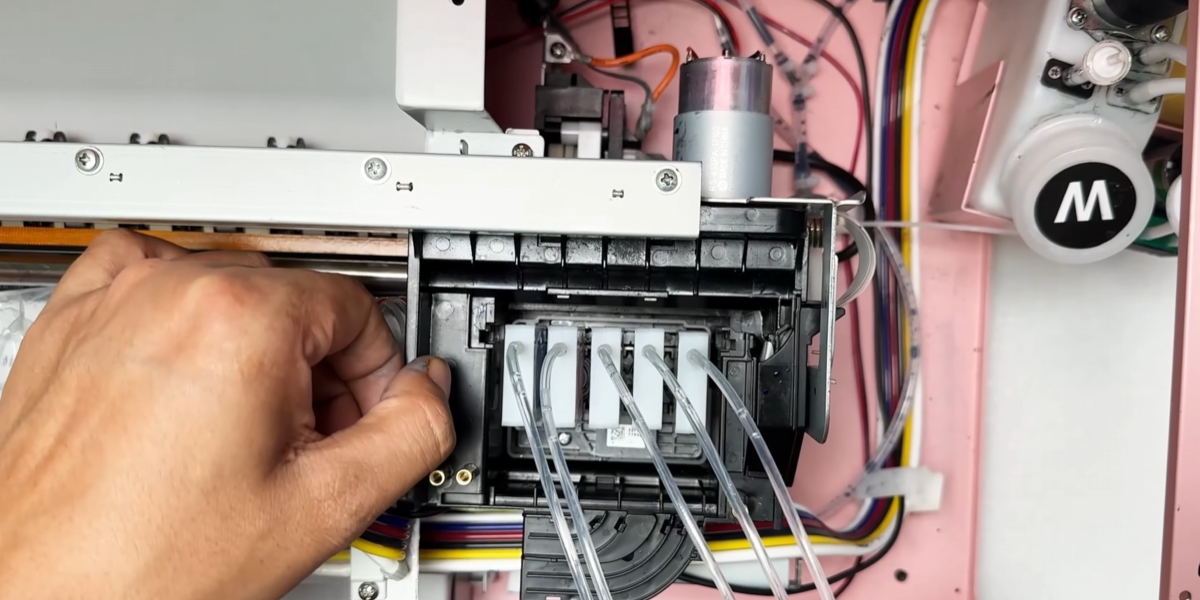

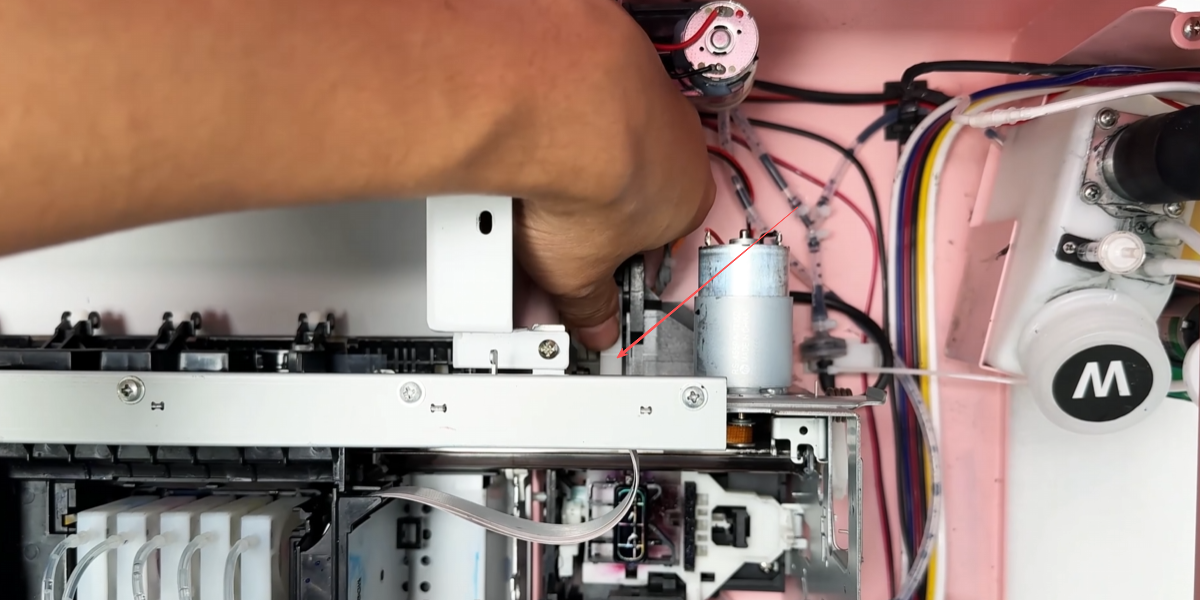

10 Remove the upper panel.	11 Press the buckle and return the ink carriage to its original position.	12 When you release your hand, the buckle pops up and locks the ink carriage.

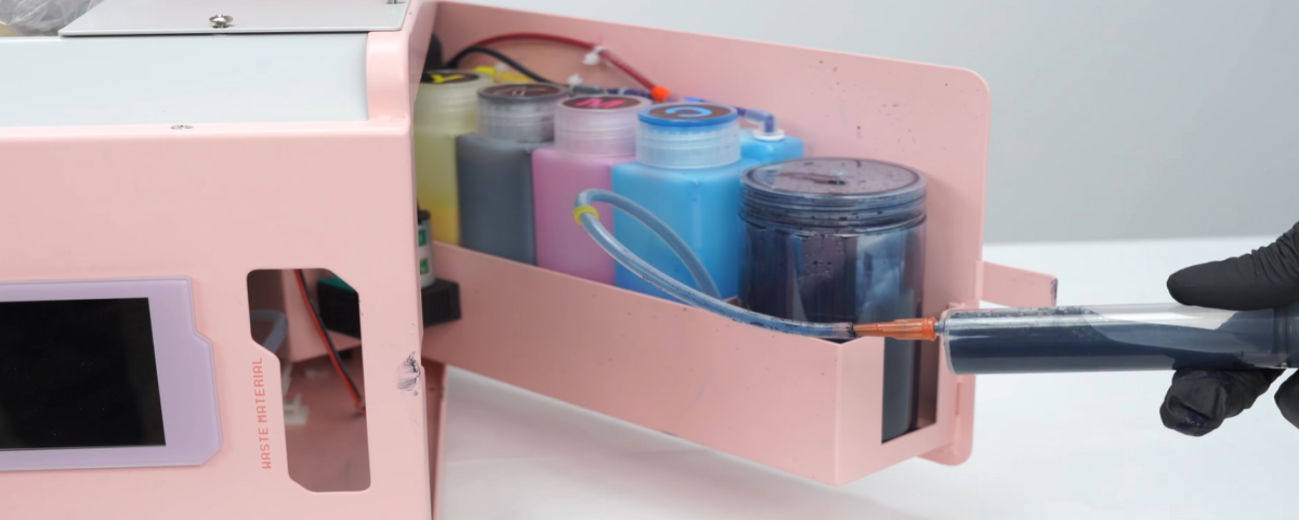

13 If the carriage cannot be pulled, it means the ink carriage is locked correctly.	14 Pump several times until the ink tube becomes transparent — this indicates it is fully ready.	15 If no liquid can be drawn, there is no proper fit — return the cartridge to its original position and retry.

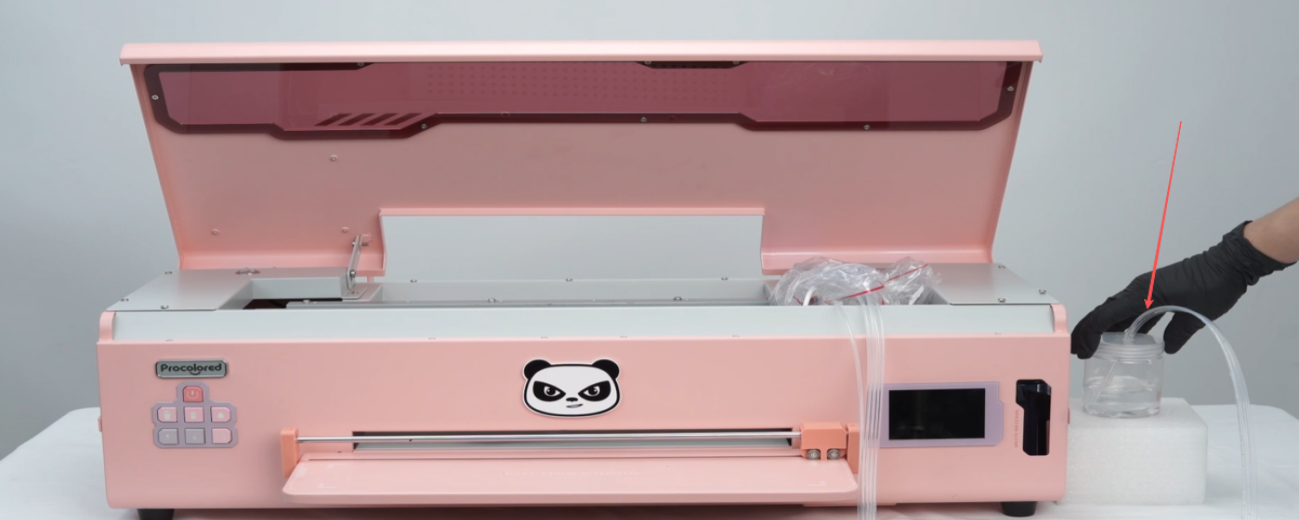

16 Install the upper cover.	17 The moisturizing fluid needs to be stored in a high place.

¶ DTF K13 LiteInstall Moisturizing Device
