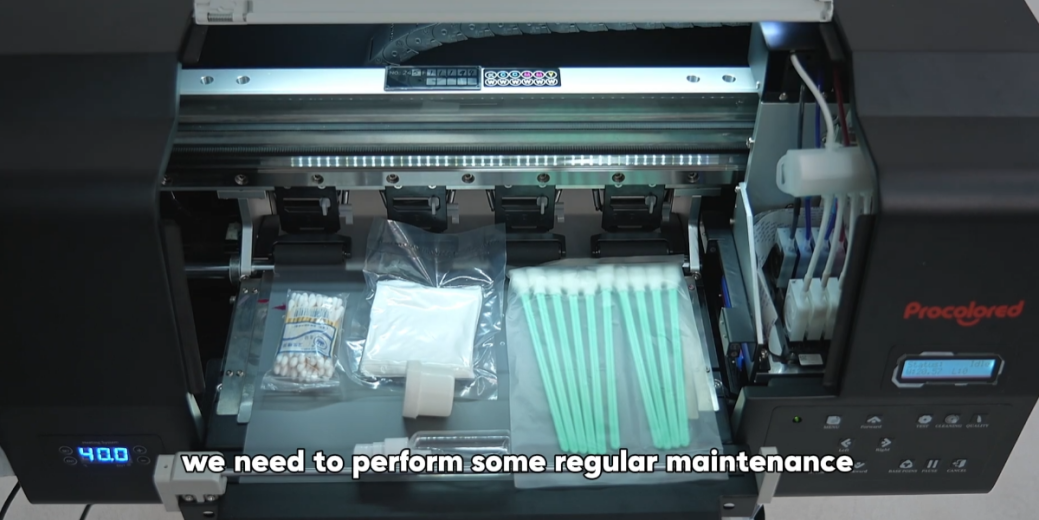

 01Regular maintenance is needed to protect the machine and maintain its performance during use. |

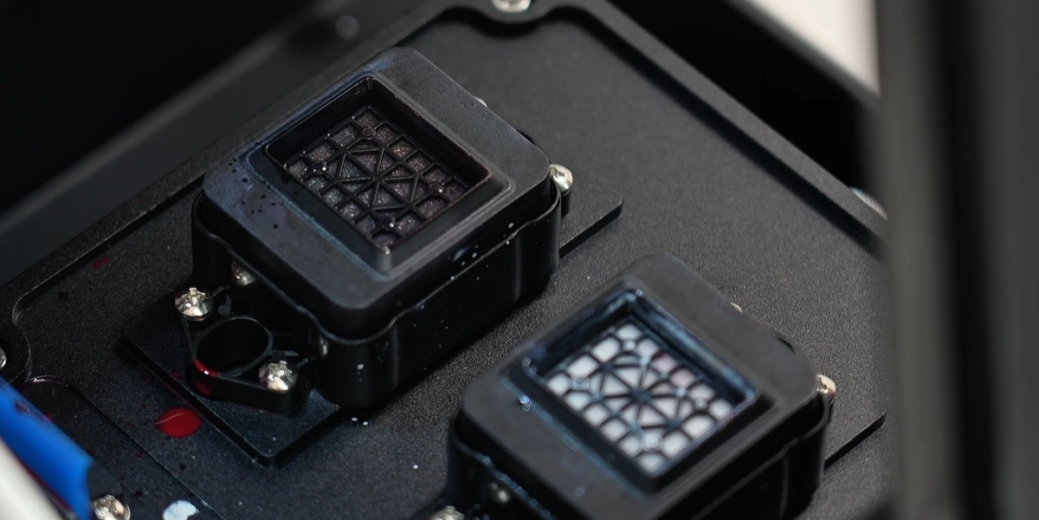

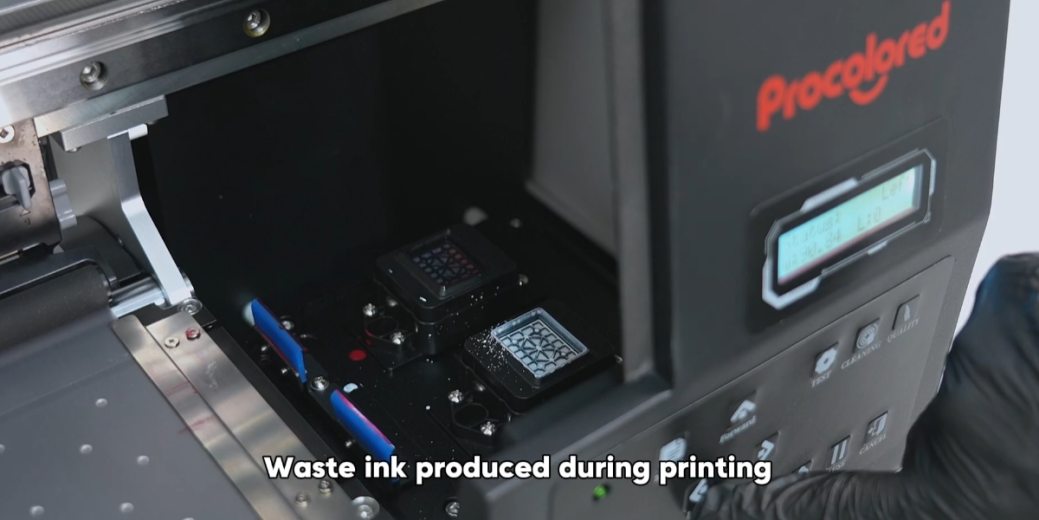

 02Waste ink is always discharged around the waste ink pad — keep this area clean. |

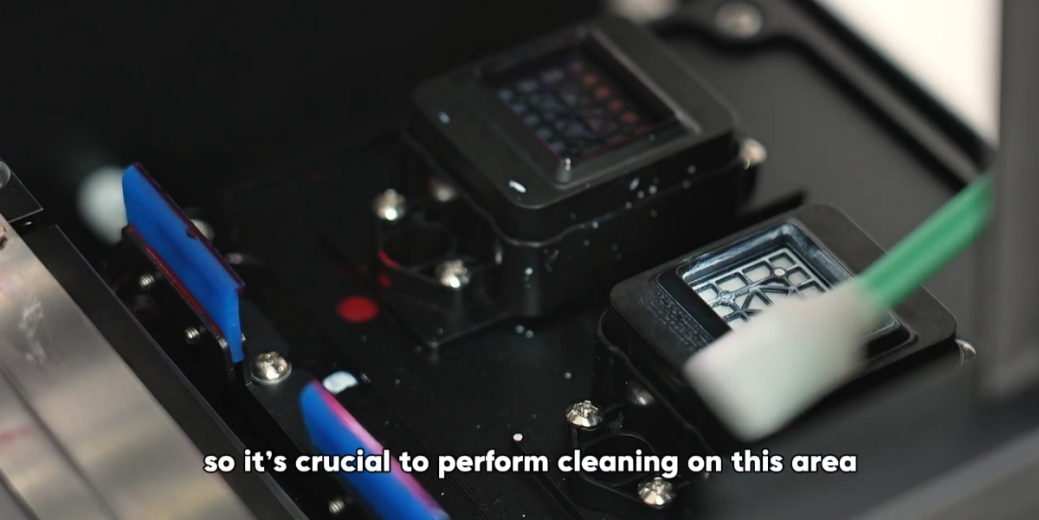

 03Turn off the printer and use swabs to clean the waste ink pad. |

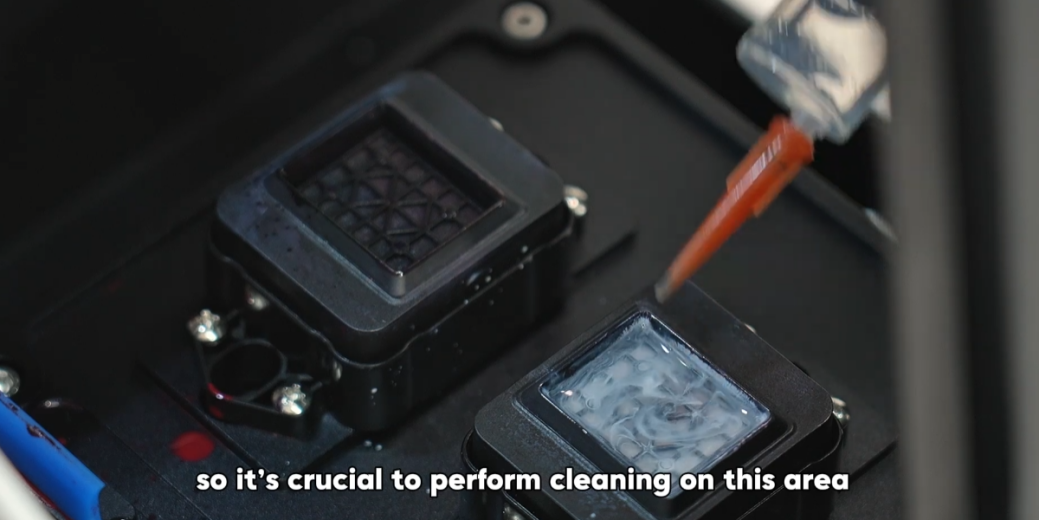

 04Inject clean water into the ink pad. |

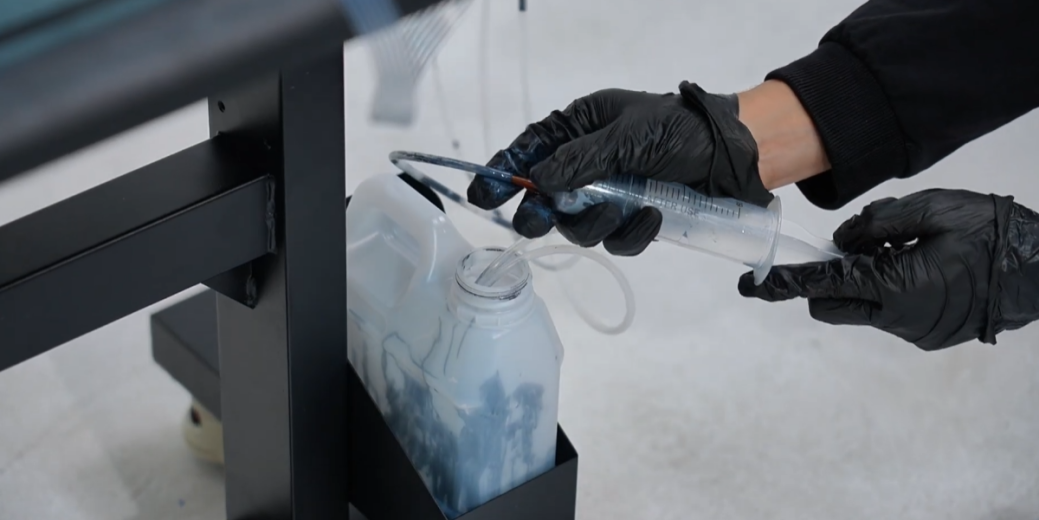

 05Use a syringe to extract waste ink from the tubes. |
 06Extract the liquid from the ink pad. Weekly cleaning of the platform is recommended. |

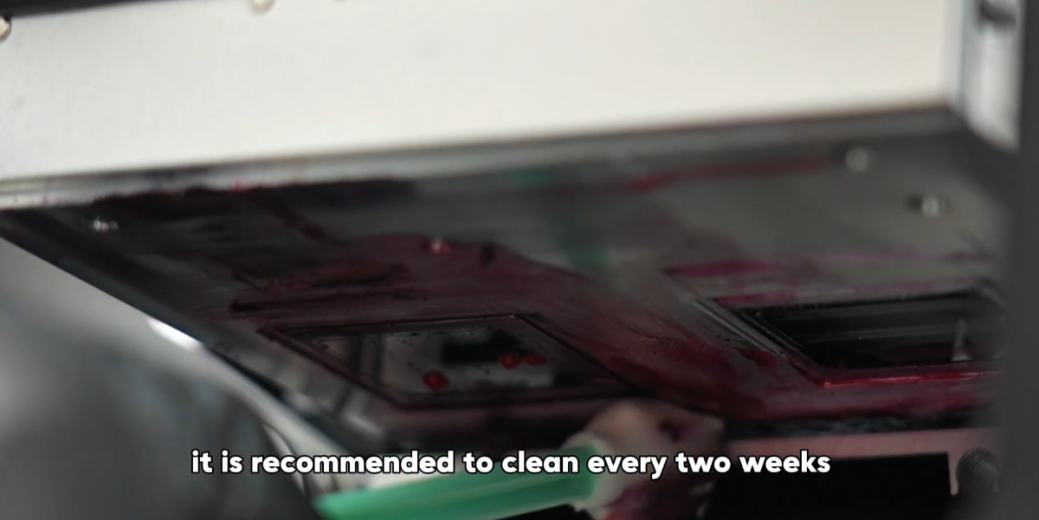

 07Use a cotton swab to clean dried ink from the bottom of the printhead. Recommended every two weeks. |

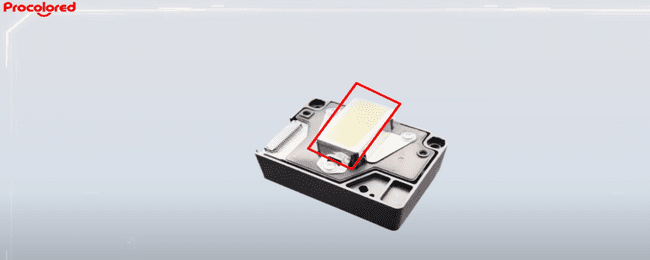

 08Attention: Do not touch the mirror area. Do not clean the nozzle area directly. |

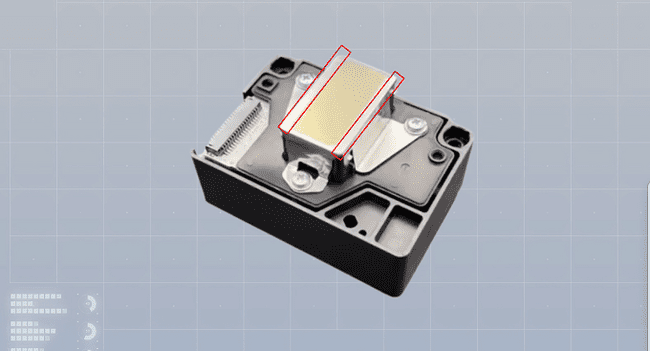

 09Only clean the areas on both sides of the nozzles. |

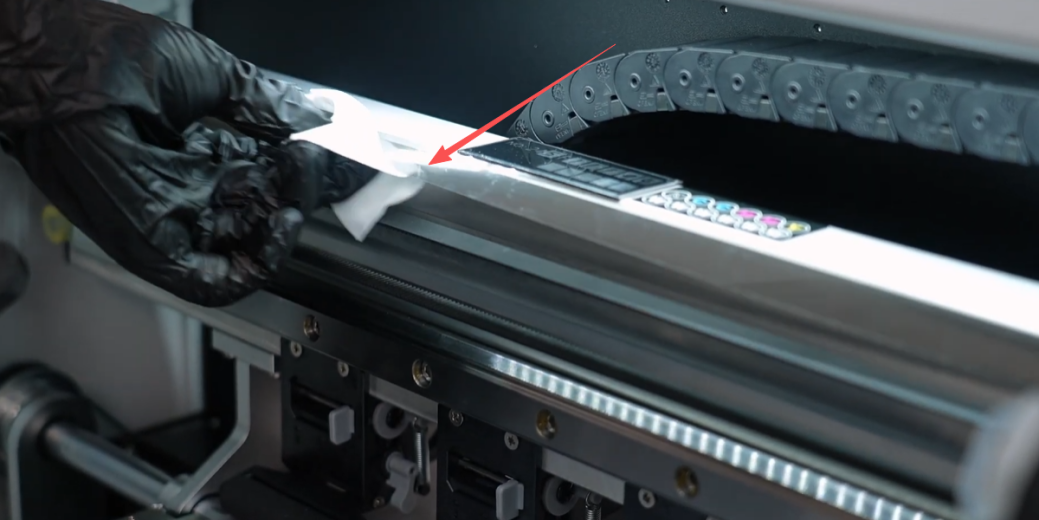

 10Use the lint-free cloth to clean the encoder strip. Recommended every two weeks. |

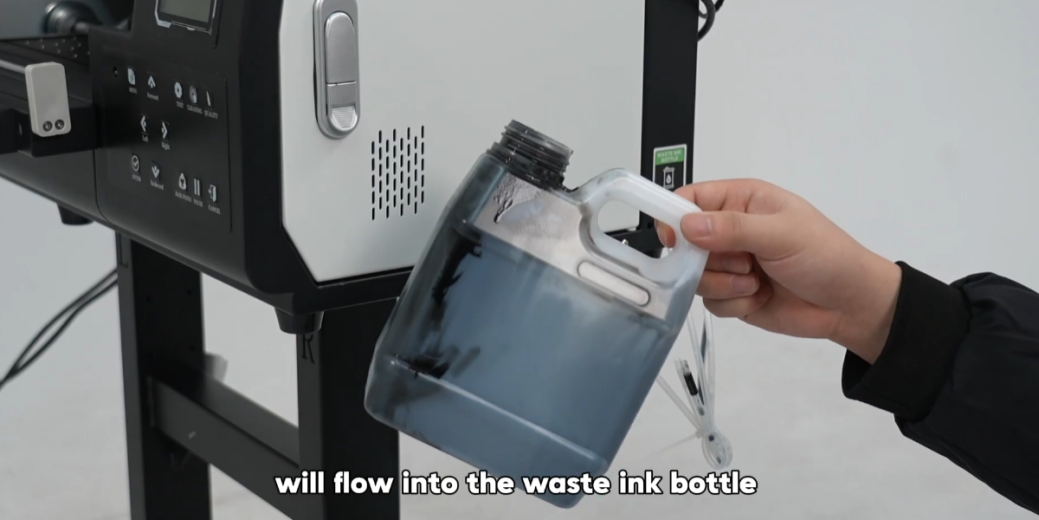

 11Empty the waste ink bottle weekly to prevent overflow. |

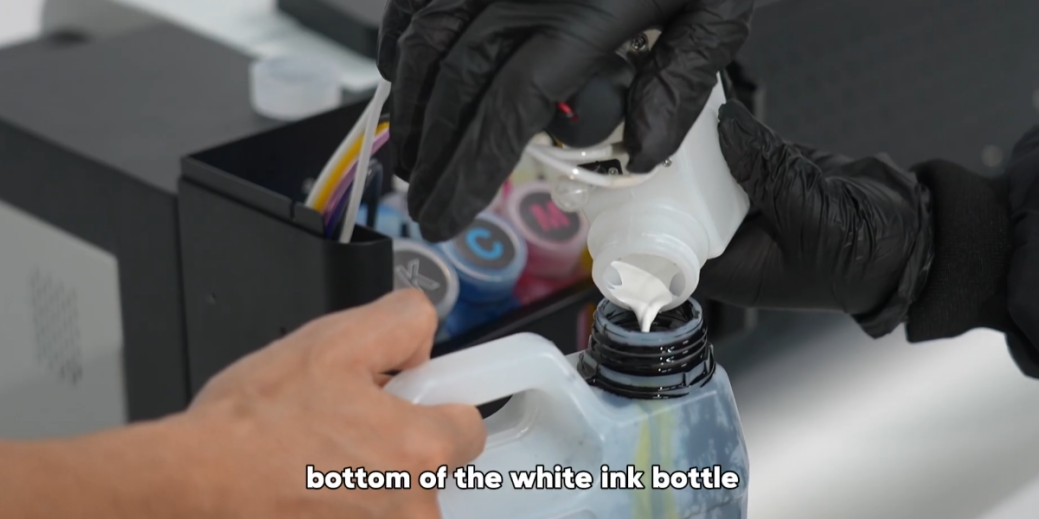

 12White ink settles over time — sediment is visible at the bottom of the bottle after pouring out the ink. |

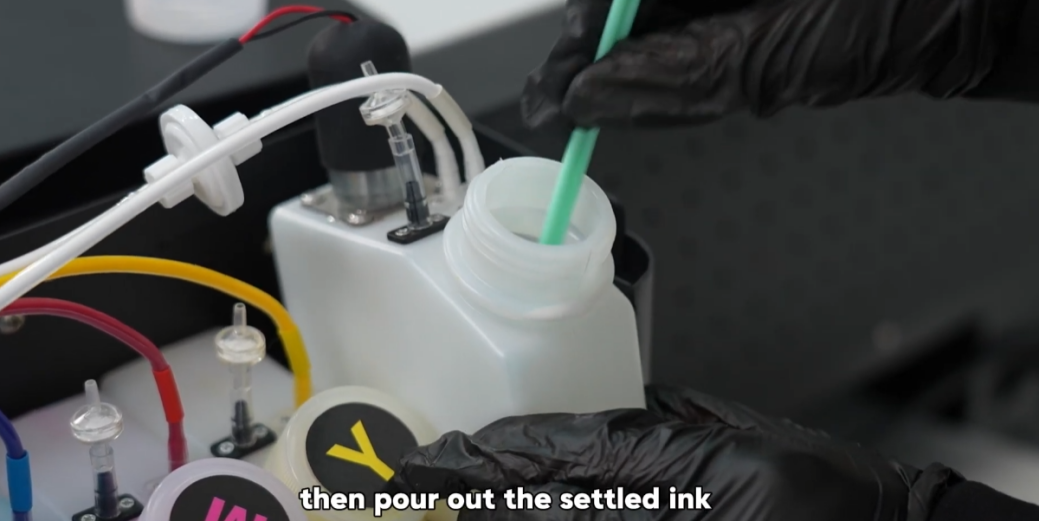

 13Add water, stir, and pour out the settled ink. Recommended every 30 days. |

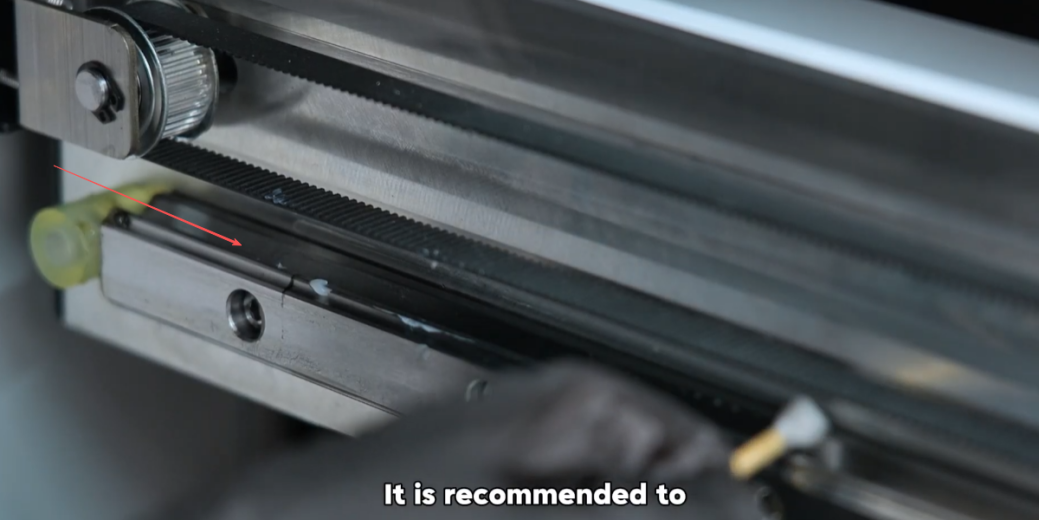

 14Add lubricating oil to the guide rails every 30 days to ensure smooth printhead movement. |
|
