Printing Guides

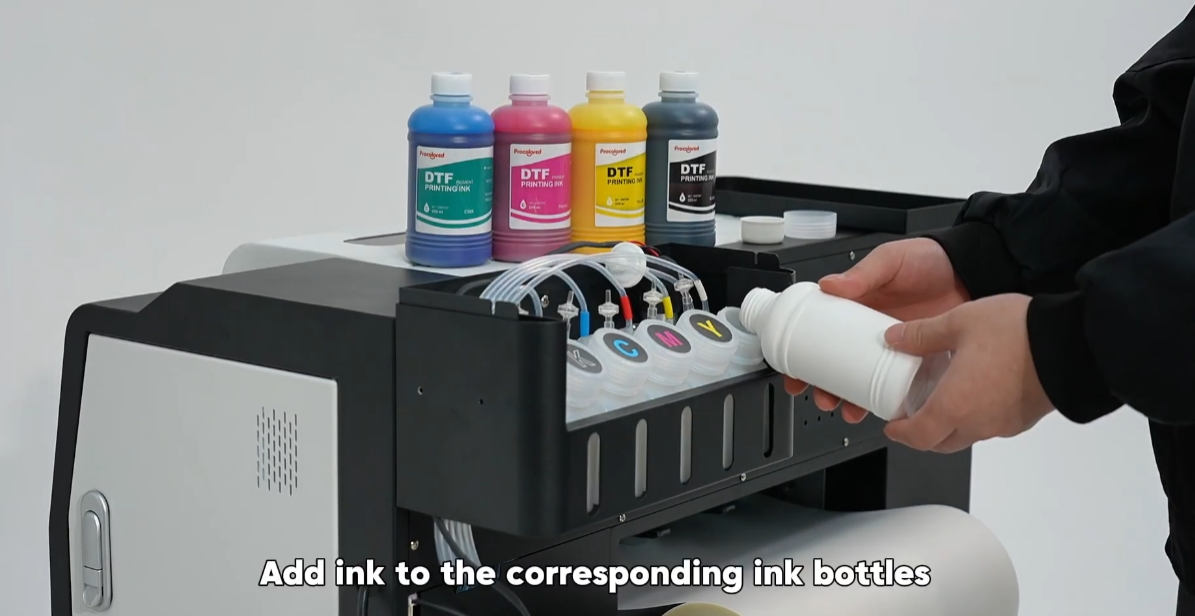

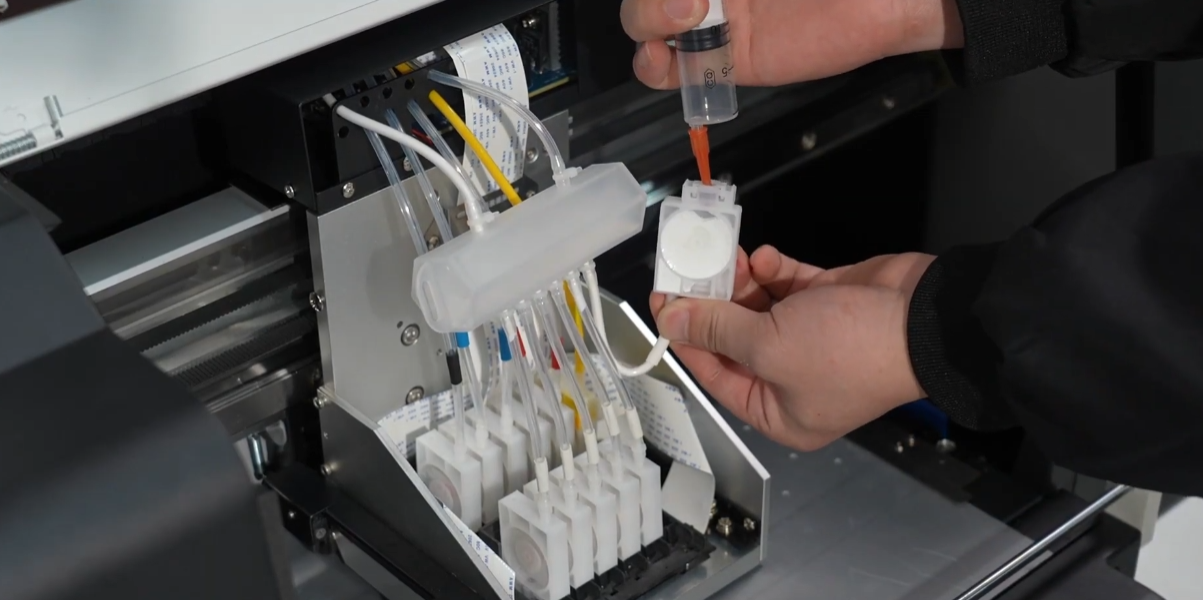

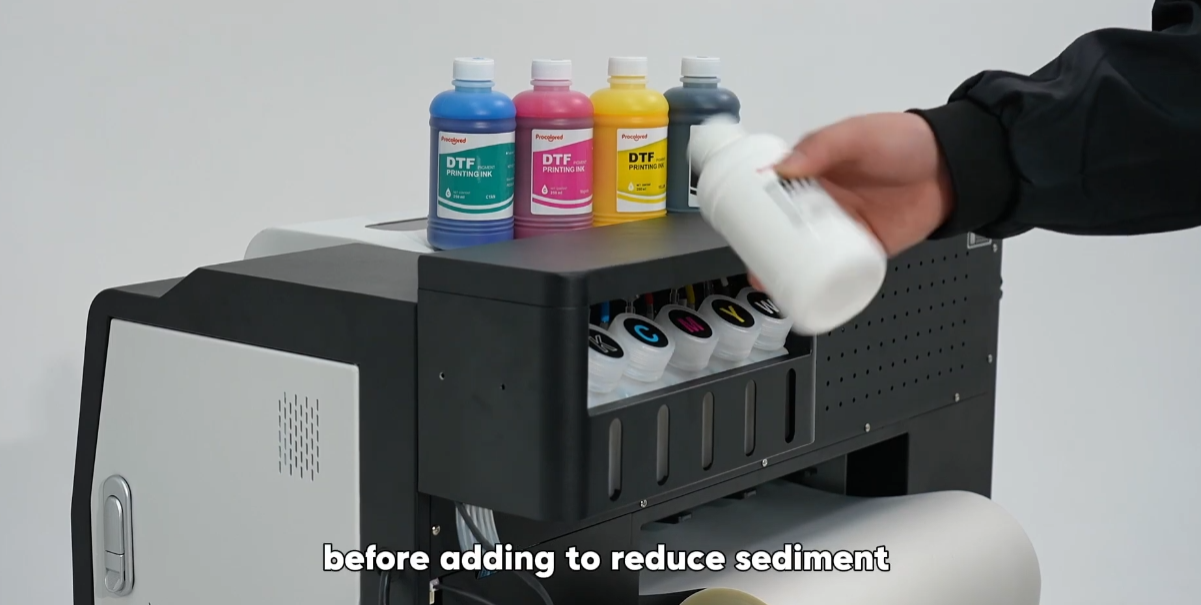

01 Shake the ink bottles vigorously before adding to reduce sediment.	02 Add ink to the corresponding ink bottles.	03 Use the syringe to draw 3–5ml of ink from each cartridge.

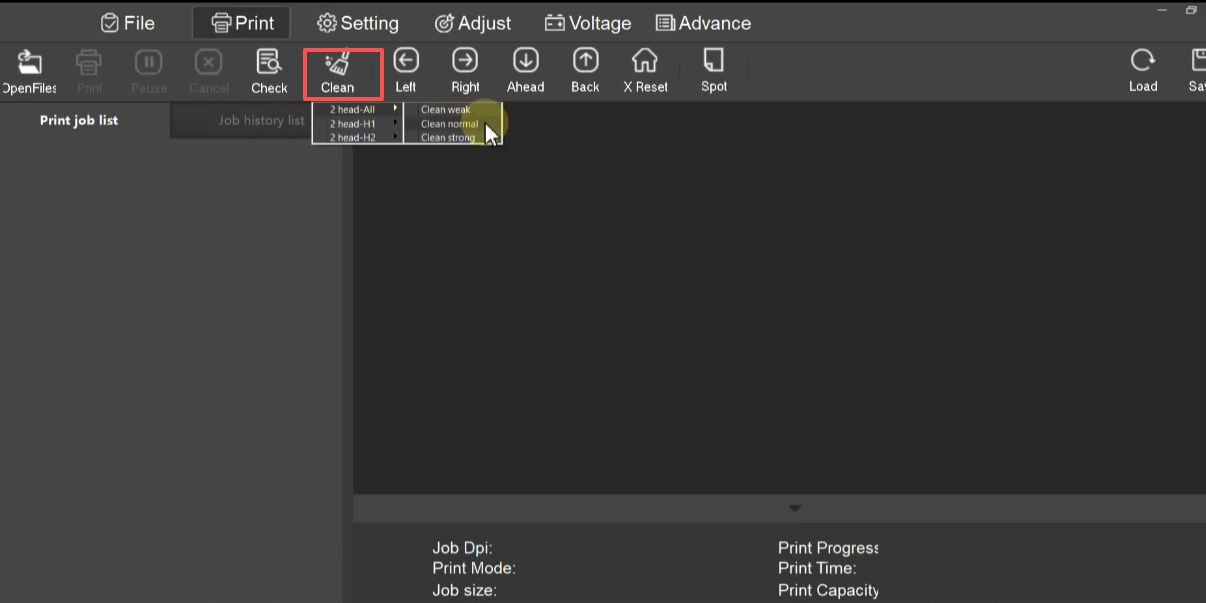

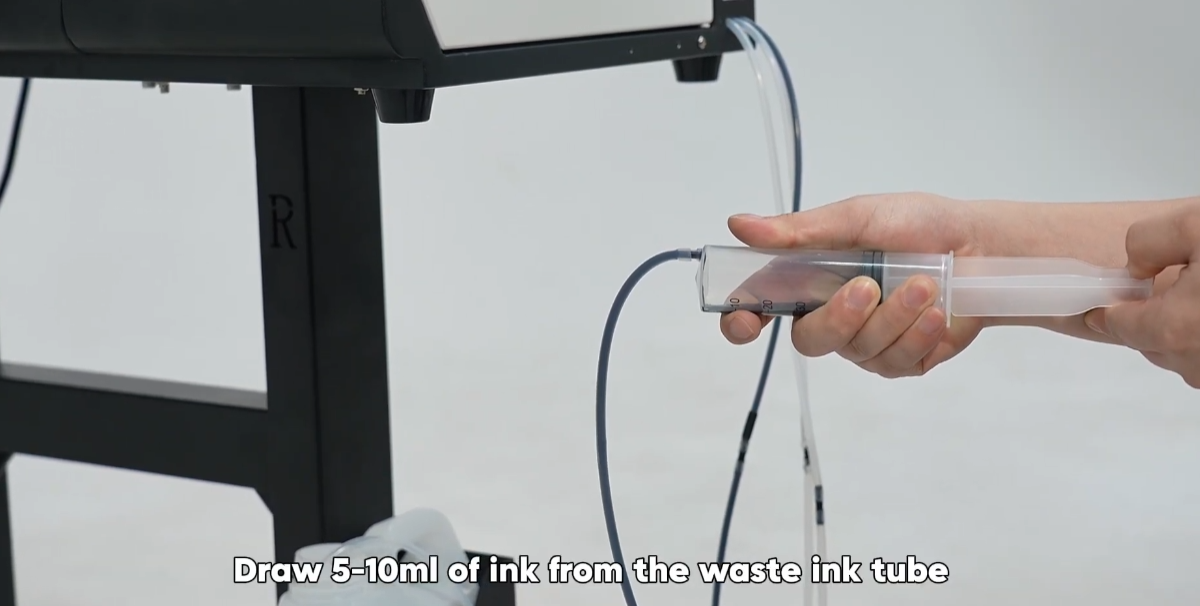

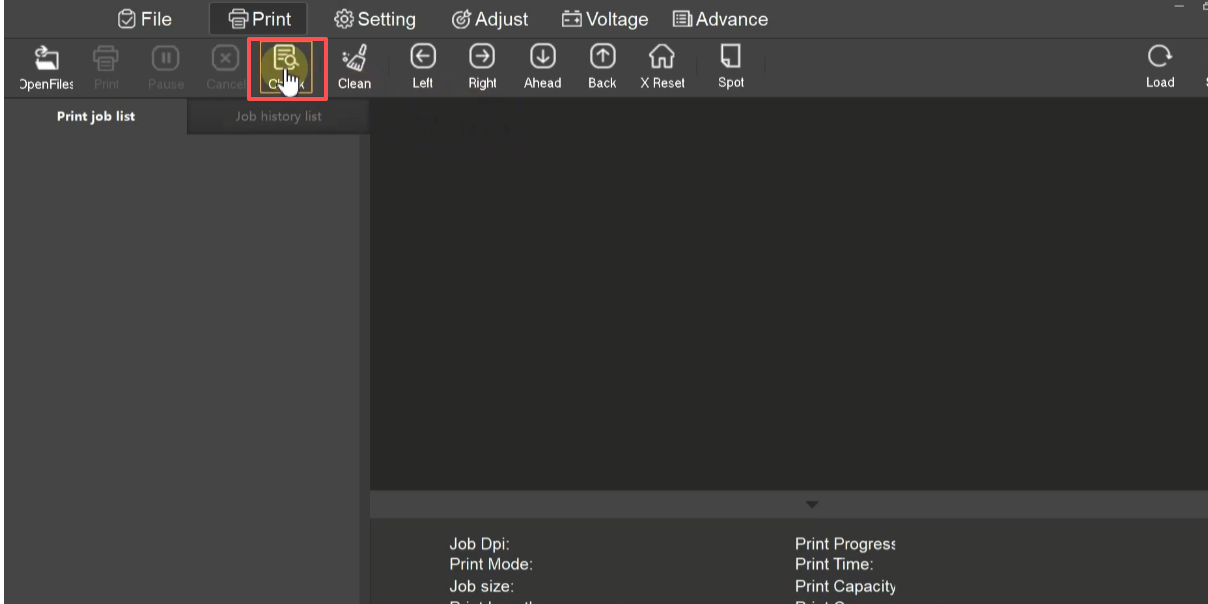

04 Draw 5–10ml of ink from the waste ink tube.	05 Send a clean command on the PrintExp control software.	06 Click Check. Print a test page to verify the printhead nozzle status.

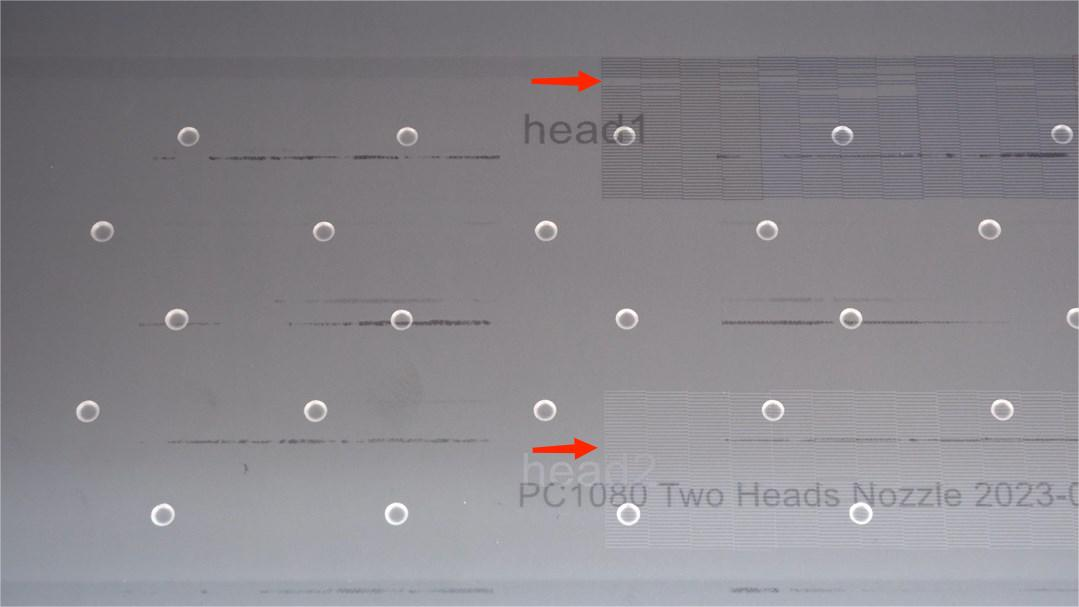

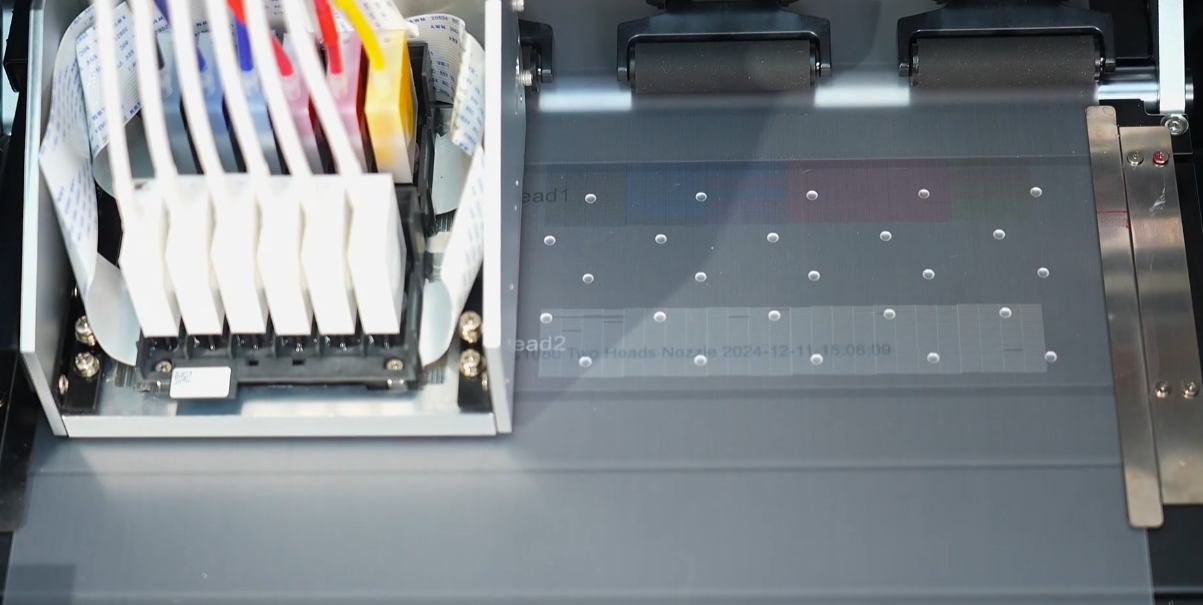

07 If all lines are complete and clear, the printhead status is perfect.	08 If there are too many broken lines, clean the print head again.

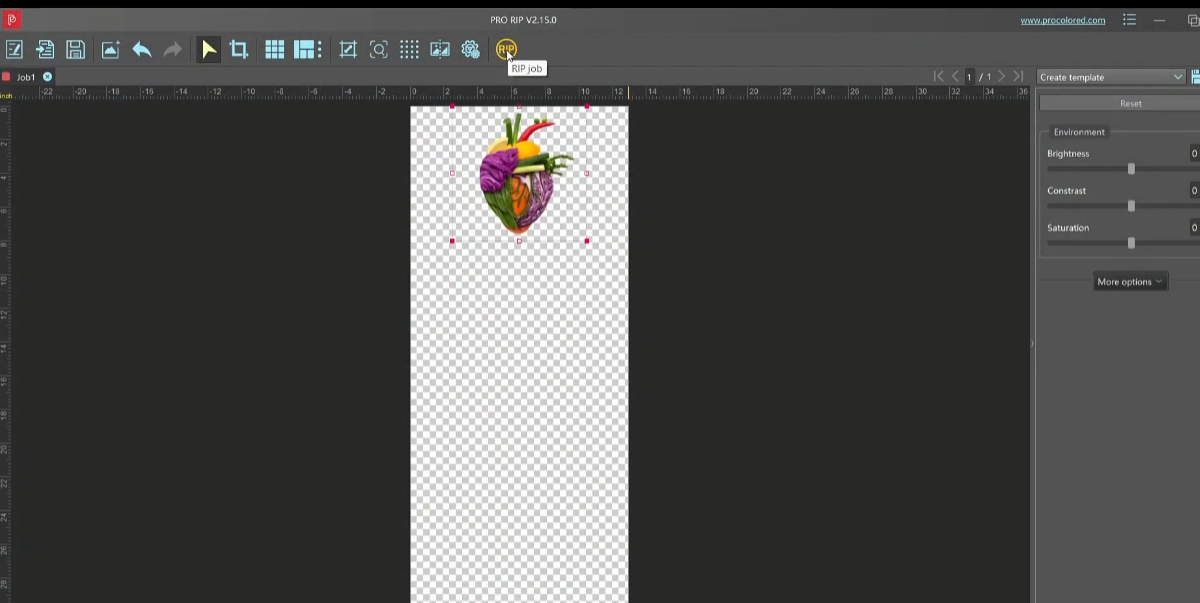

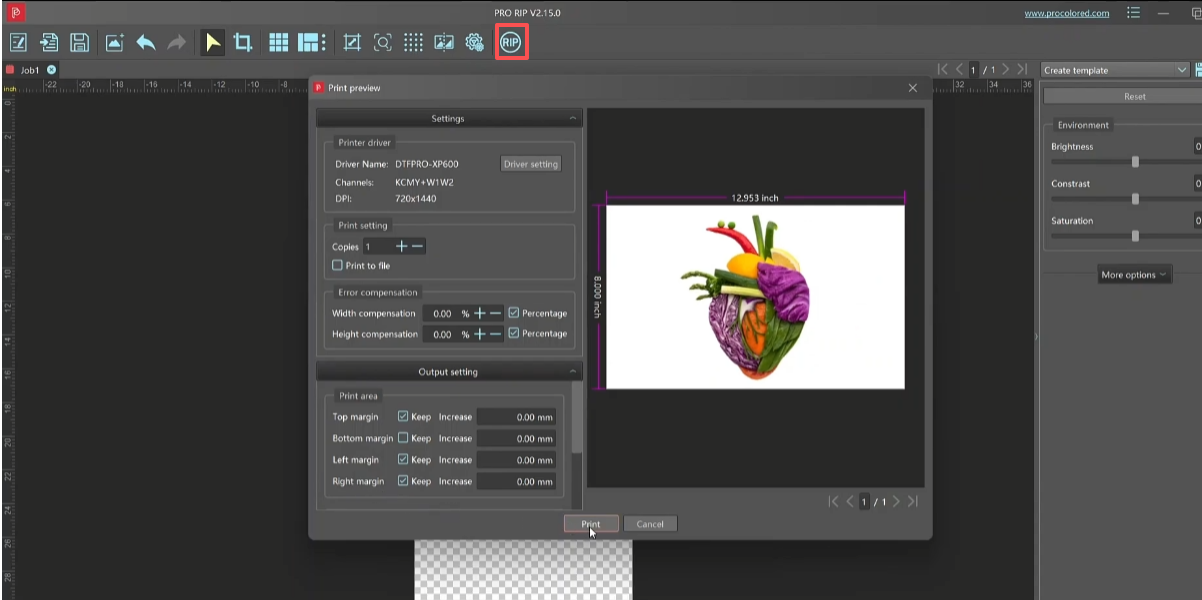

01 Clean the print head and print a test page to check the nozzle status.	02 Import your desired image.	03 Set the print size and start to RIP the image.

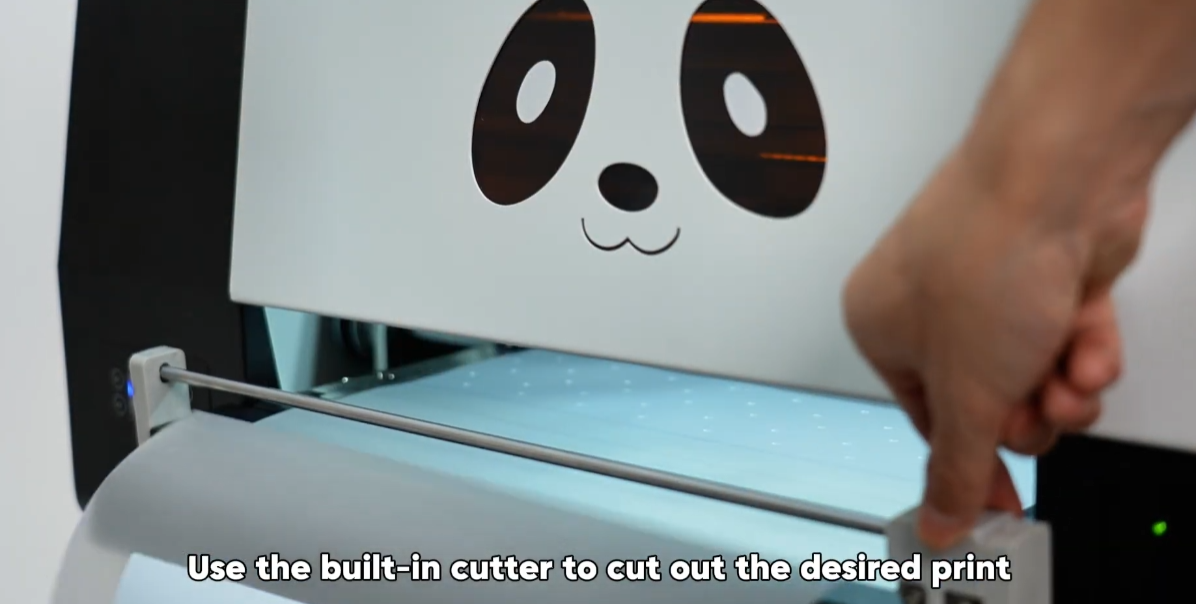

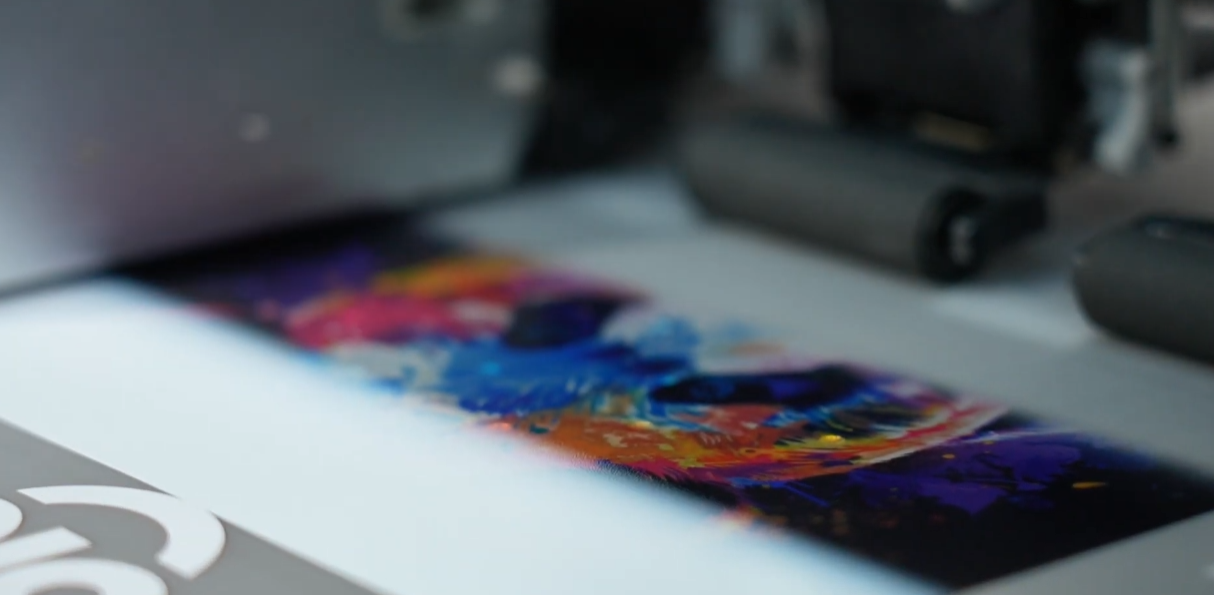

04 A layer of white ink on the back makes colors more vivid and prevents color absorption by dark fabrics.	05 Use the built-in cutter to cut out the desired print.

¶ DTF F13 Pro
Printing Guide
