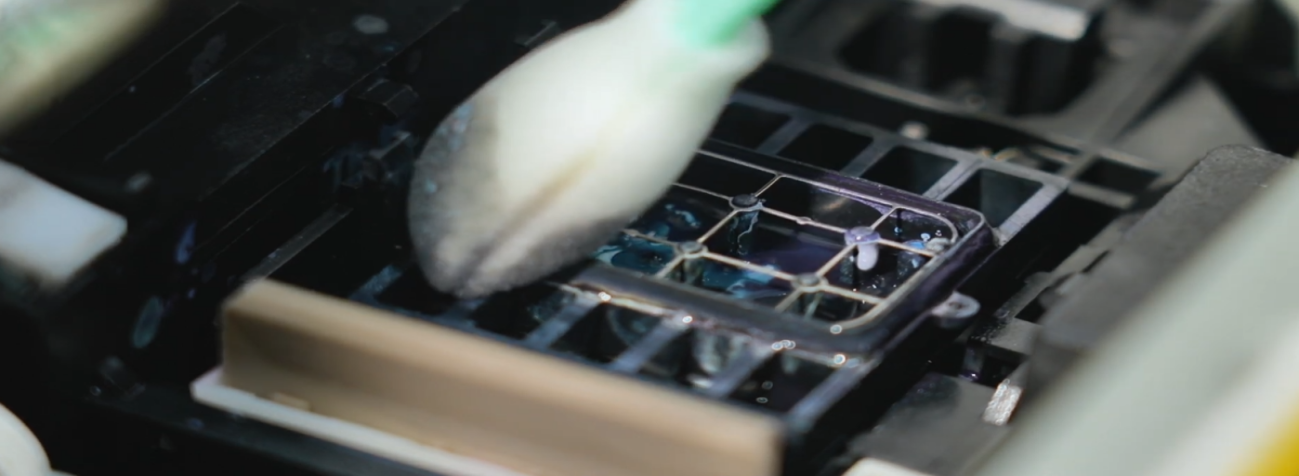

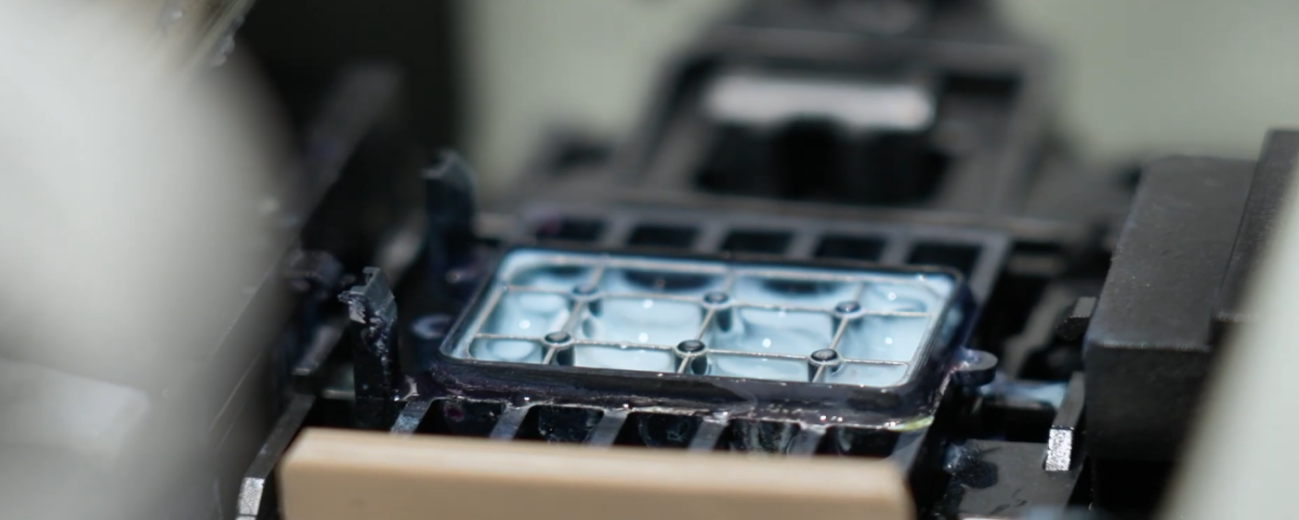

 01Turn off the printer and use swabs to clean the waste ink pad. |

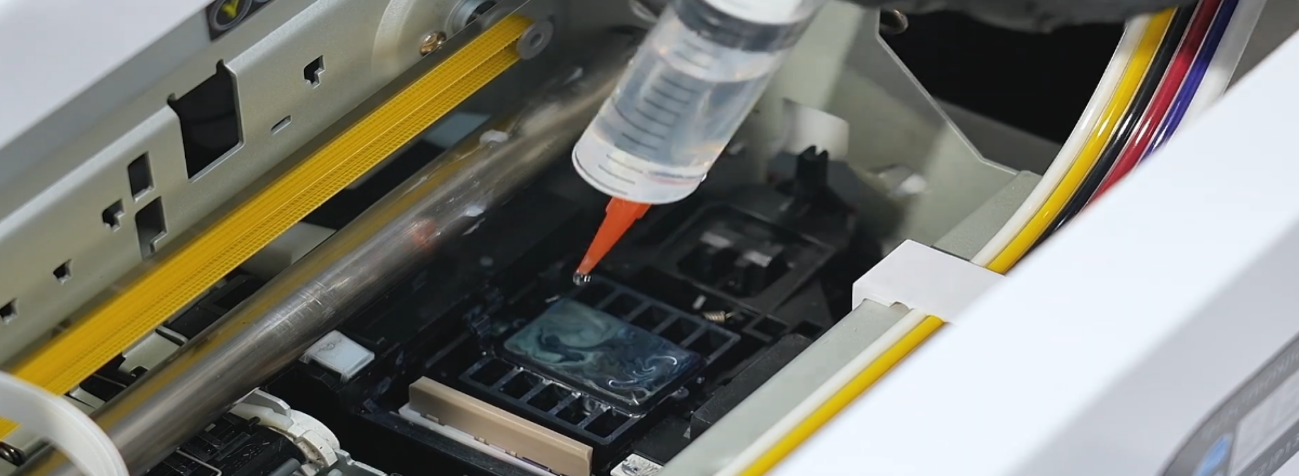

 02Inject clean water into the ink pad. |

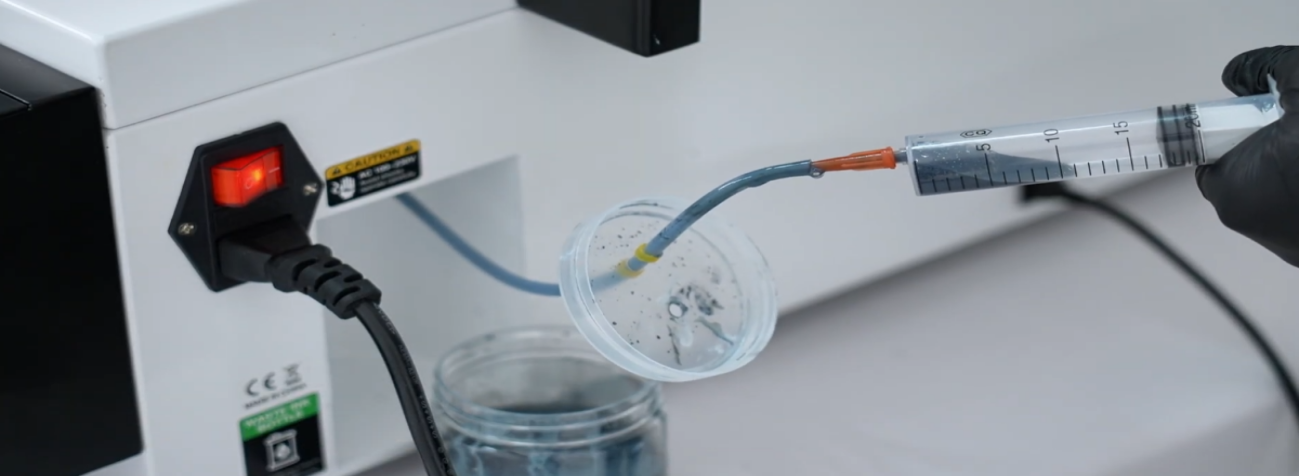

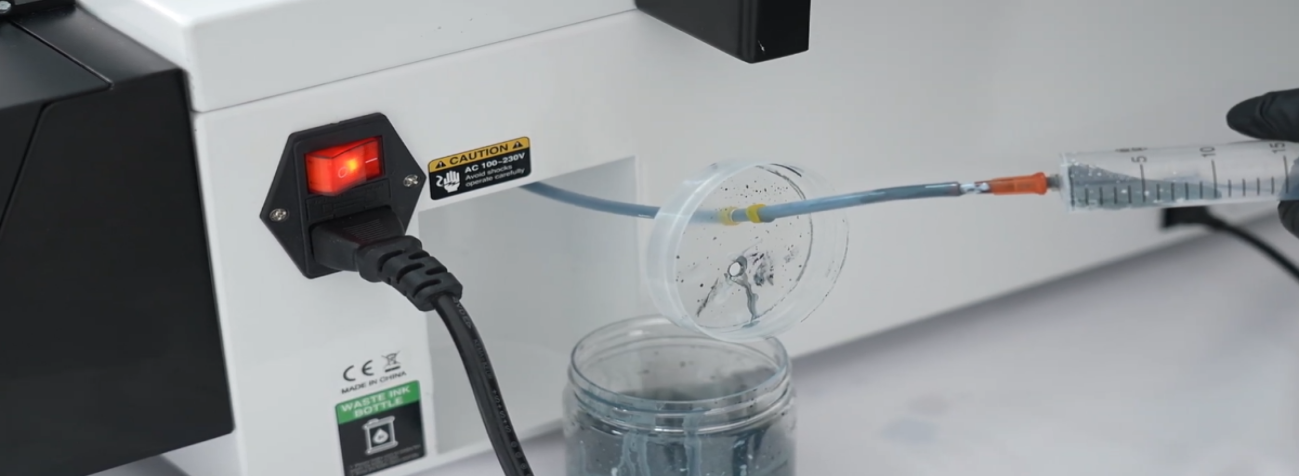

 03Use a syringe to extract waste ink from the tubes. |
 04Extract the liquid from the ink pad. Recommended to clean the platform once a week. |

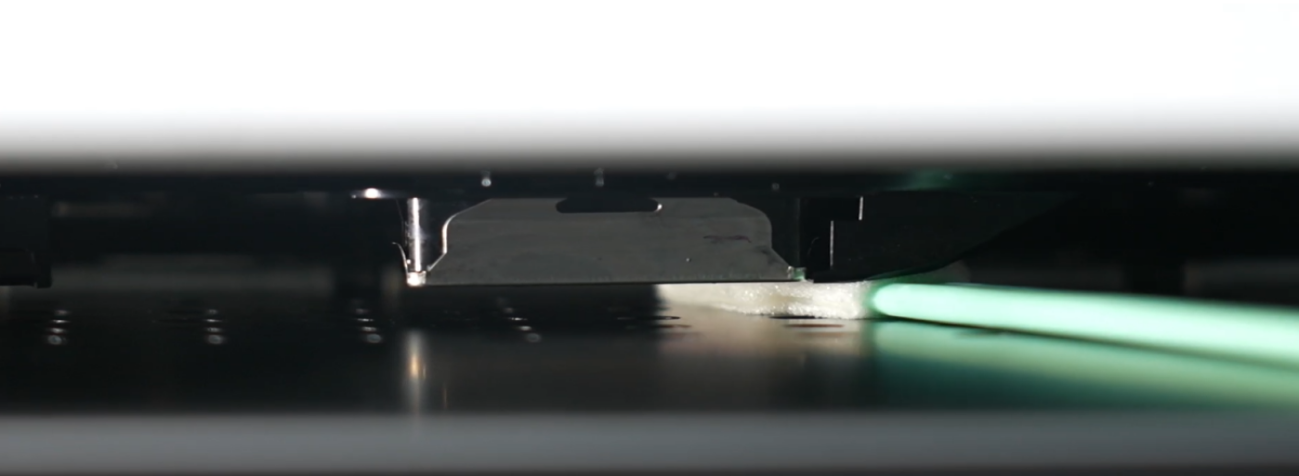

 05The bottom of the print head can accumulate dried ink — use a cotton swab to clean it. Recommended every two weeks. |

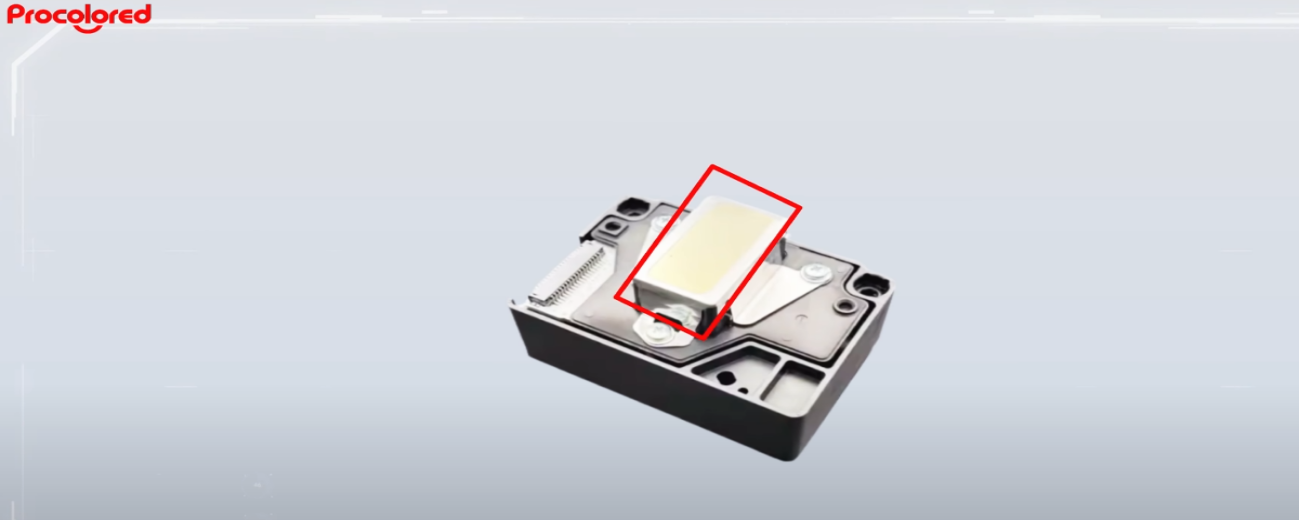

 06Do not touch the mirror area and do not clean the nozzle area. |

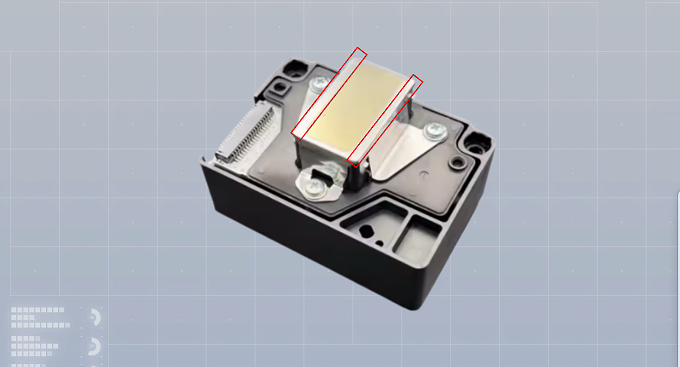

 07Only clean the areas on both sides of the nozzles. |

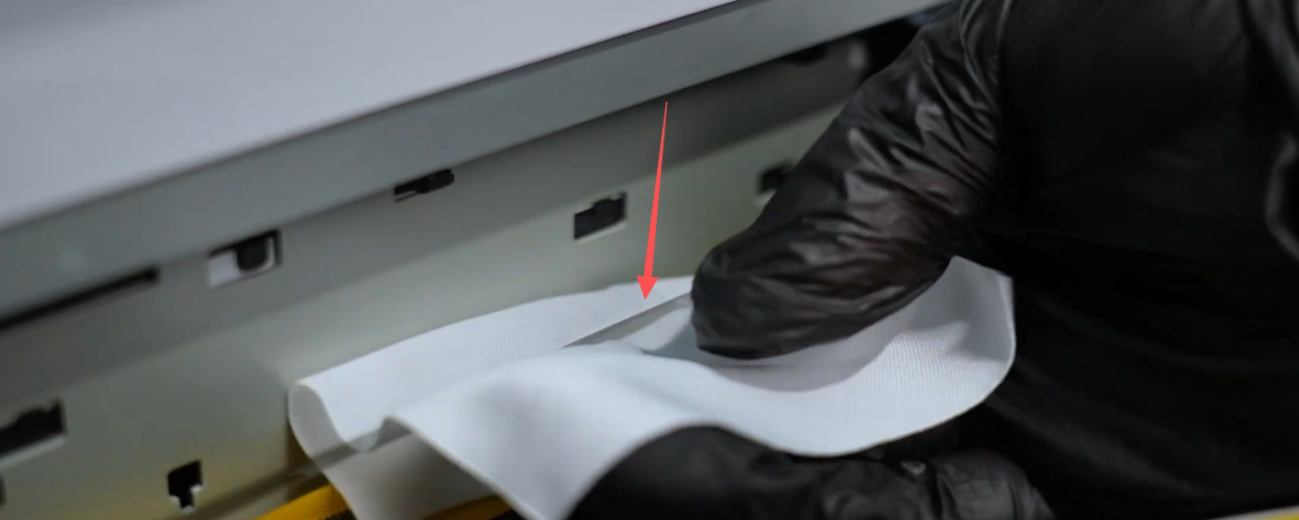

 08The encoder strip handles X-axis positioning — keep it clean using the provided lint-free cloth. Recommended every two weeks. |
 09Waste ink collects in the waste ink bottle — recommended to empty it weekly. |

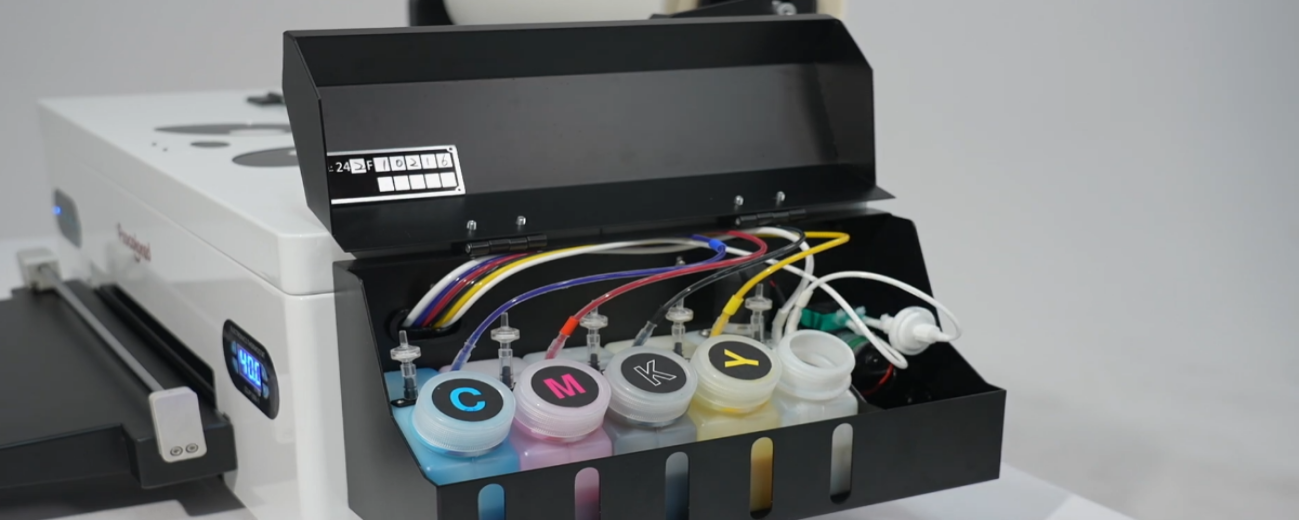

 10White ink tends to settle — after pouring out the white ink, add water and stir. |

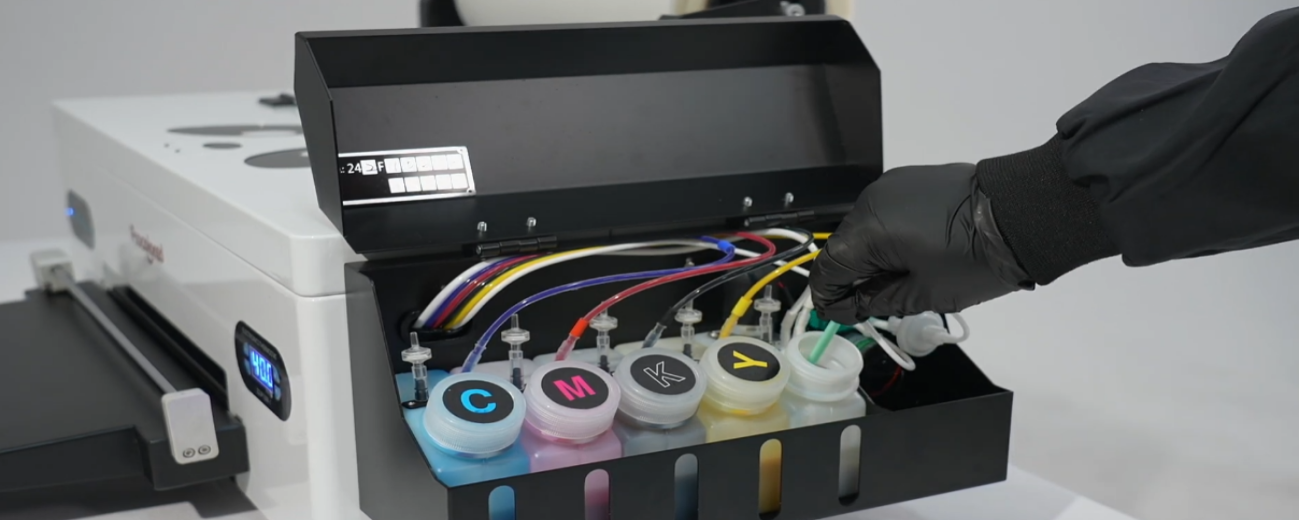

 11Pour out the settled ink. Recommended to do this every 30 days. |

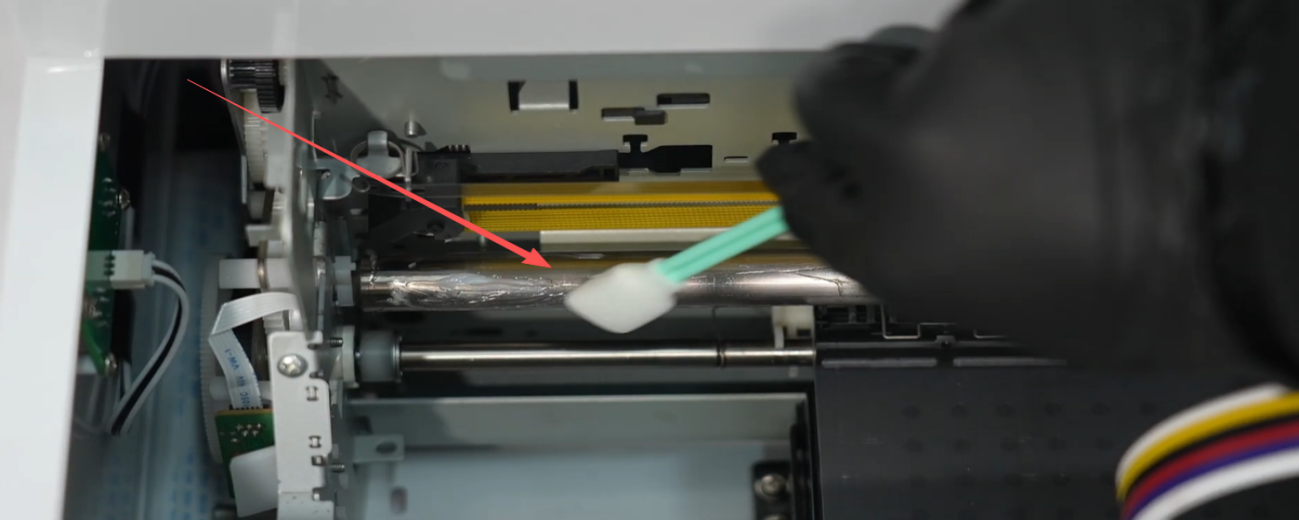

 12The guide rails consume grease over time — add lubricating oil every 30 days to maintain smooth print head movement. |
